Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Rail Transfer Cart | Origin Place: | Xinxiang, China |
|---|---|---|---|
| Operation Way: | Pendant & Remote Controller | Running Distance: | Unlimited |
| Color: | Customized | Power Source: | No Power |
| Load Capacity: | Customized | Running Speed: | 0~20m Per Minute |
| Wheel: | 4 | ||
| High Light: | sgs industrial rail cart,20m per minute industrial rail cart,20m per minute rail transfer cart |
||

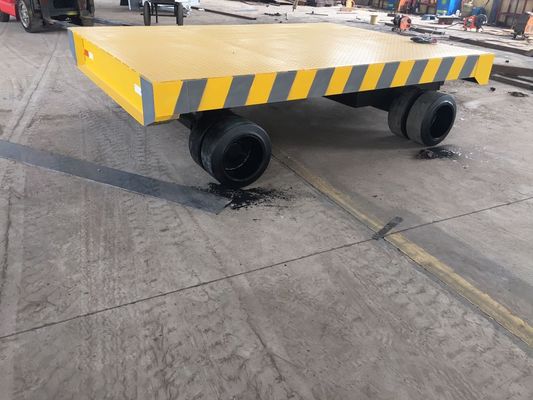

No power Heavy duty Material Handling Carts use on Cement floor
What is No power Heavy duty Material Handling Carts use on Cement floor
Trailer don't have power. Usually, it need driven by manual or other power machine. Regards shape of the car, we will design suitable appearance according to client's appliciation. Our transfer cart are used for rail transportation.
We can also design material wagon for cement floor transportation. Load capacity is no less than 120% and we can also customize the table size, safety device and other devices for you according to your demands.
Parameters of Trailer
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T | |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 | |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 | |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 | |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 | |
| On cement floor | Tire Specification | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| On rail | Rail Inner Gauge(mm) | 1435mm | ||||||
| Wheel material | LD steel wheel, Angel box wheel | |||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 | |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 | |
Package & Transportation
Why choose our team
We are a collection of research and development, design, manufacturing as one of professional international company of handling equipment.
Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.
