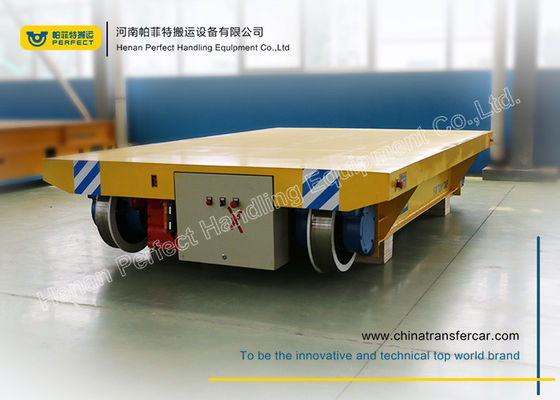

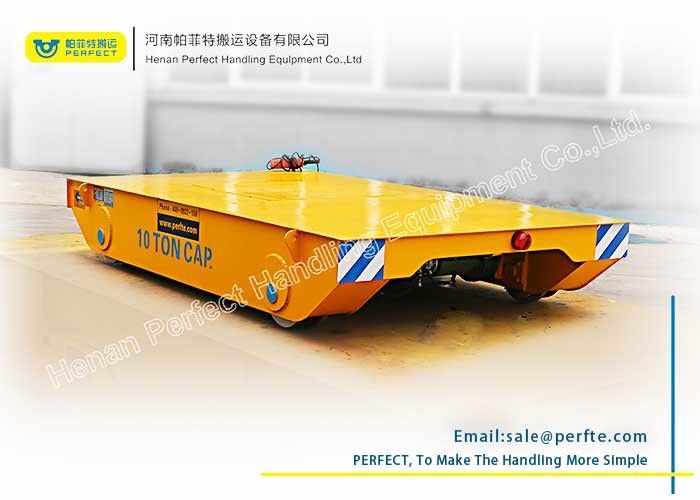

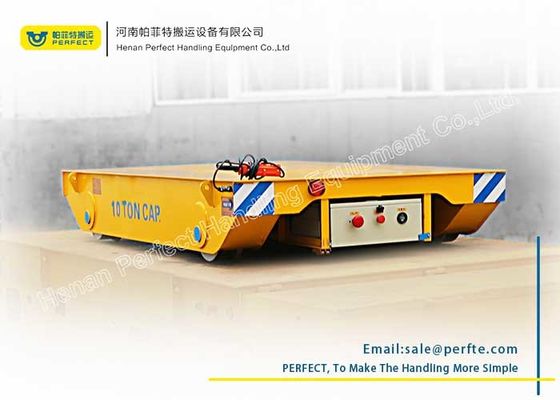

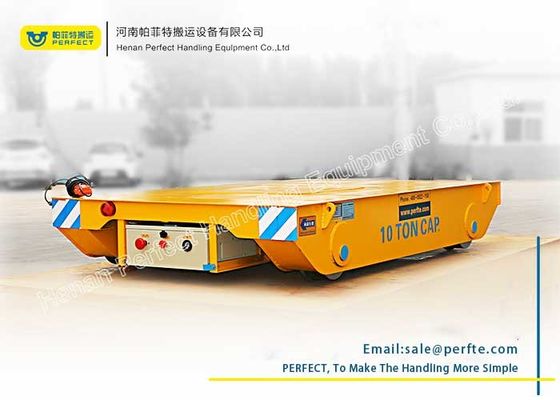

Automatic Heavy Load 5000kg Rail Transfer Cart

                                                                                About product descraptions

The in-plant transfer cart can be powered by battery,low voltage rail,cable drum,trailing cable.There are mounted V-shape and roller on in-plant transfer cart to protect the coil from falling down from the in-plant transfer cart.The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil die.V-shape supporting and roller can be removable from the in-plant transfer cart.We can design coil in-plant transfer cart according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	500	600	700	1000	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100



Use area



For Customers

• Our commitment: The load bearing safety factor of the Coil Handling Vehicle is no less than 120%;
• Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
• 16 hours engineering service and 24 hours internet service for our customers;
• During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
• Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
