Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil Rail Transfer Cart Electric Material Battery Operated Coil Transfer Cart Industry Transfer Car | Type: | Coil Rail Transfer Cart |
|---|---|---|---|
| Wheel Base(mm): | 1200-7000 | Ground Clearance(mm): | 50 |
| Running Speed(m/min): | 0-15 | Wheel Diameter(mm): | 270-600 |
| High Light: | flatbed coil transfer cart,conductor rail coil transfer cart,conductor rail battery transfer cart |
||

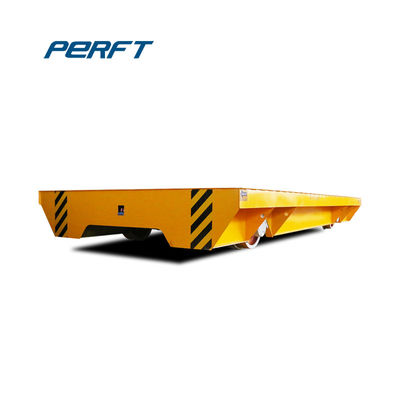

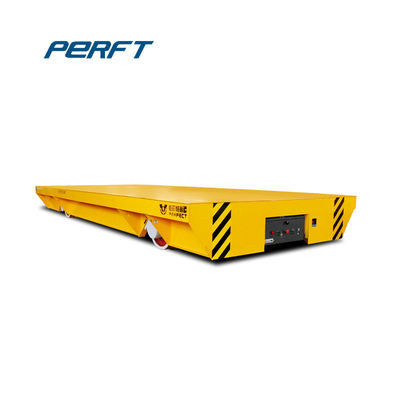

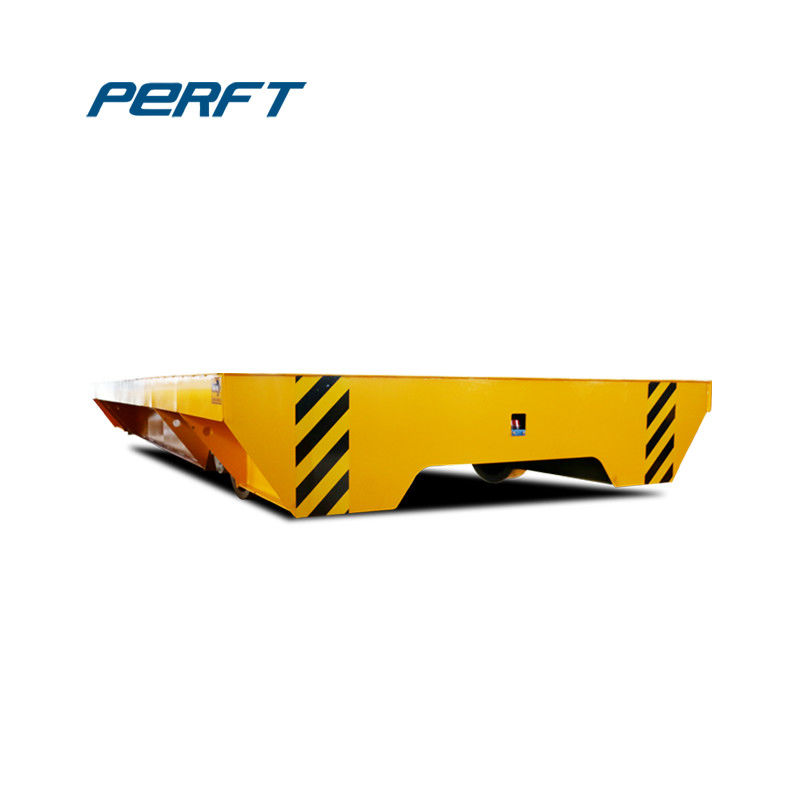

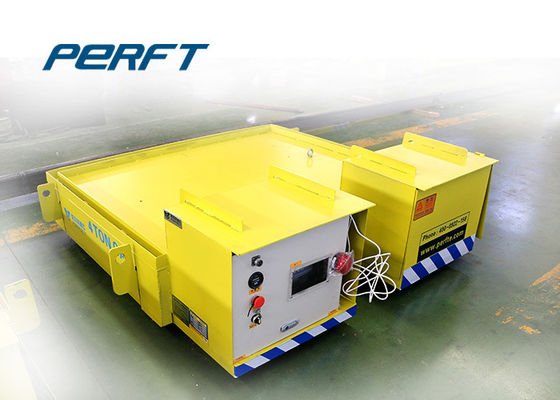

Details of Coil Rail Transfer Cart:
The Coil Rail Transfer Cart Electric Material Battery Operated Coil Transfer Cart Industry Transfer Car get the power from the battery which is installed inside the car. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, move backward, turn around, change speed, etc. The start-up DC motors installed in the car is smooth with high torque and low voltage, so the impact force to reducer is much weaker.
How we work
Why choose Coil Rail Transfer Cart:
Technical Table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | ||
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |||
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |||
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |||
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |||
FAQ
1. Q: What term of payment do you accept ?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is you delivery time ?
A: We will delivery the carts you ordered 45 days after we accept the prepayment.
3. Q: How do product been shipped ?
A: We export the Industrial Handling Vehicle by sea or train with full container, LCL or in Bulk.
4. Q: Do you have quality assurance for Industrial Handling Vehicle ?
A: Yes, we have one year of assurance.
