Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Running Distance: | Ulimited | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Dimension: | Customized | Guarantee Period: | 12 Months |
| High Light: | conductor rail transfer cart,1t rail transfer cart,conductor rail pallet transfer carts |
||
Introduction

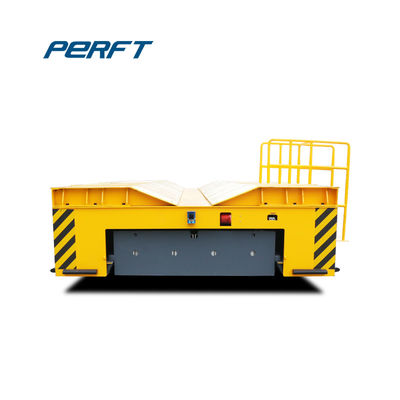

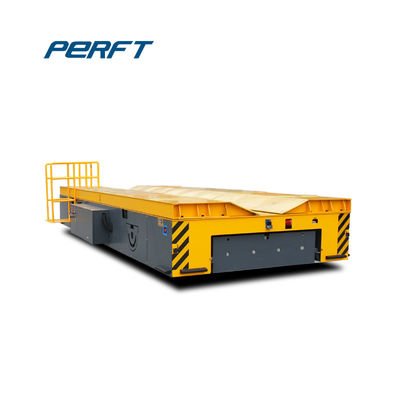

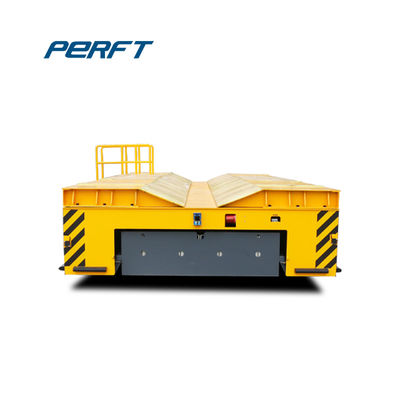

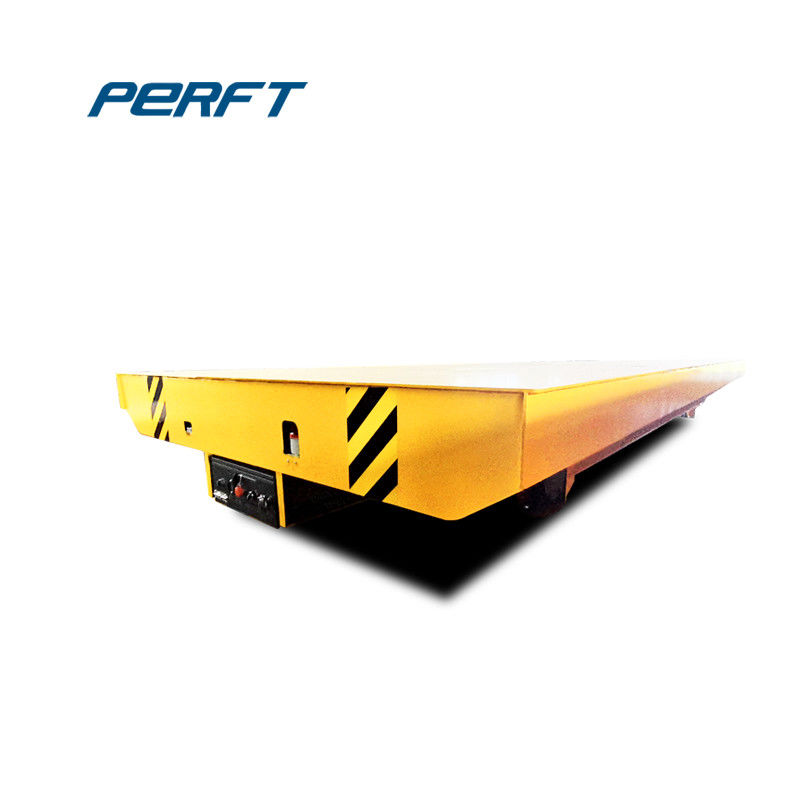

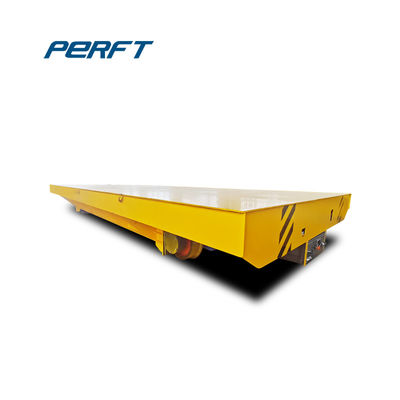

The perpendicular rail traverser consists of two carts. The bottom cart is used to carry other transfer cars across trench. It can be placed below the ground with its upper surface kept level with the ground.The load deck of the bottom cart comes equipped with rails which can be connected with various other rails so that the cart can transfer materials onto different parallel tracks. This series of perpendicular rail traverser runs on the rail, used in car maintenance or material transportation in a lot of fields.
1. Low noise it causes low noise level.
2. Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
3.Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Our factory is located in Xinxiang City, Henan province, where the Rail Transfer Cart are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high quality machine, skilled workers and experience engineers, we will supply the best Transfer Trolley with Lifting Table for you.
