Product Details:
Payment & Shipping Terms:
|
| Type: | Rail Transfer Cart | Product Name: | Heavy Duty Battery Powered Flat Rail Transfer Cart For Factory Warehousing And Industrial Material Handling Trailer |
|---|---|---|---|
| Ground Clearance(mm): | 50 | Running Speed(min): | 0-25 |
| Battery Capacity: | 600 | Motor Power(kw): | 15 |
| Running Distance For One Charge(Km): | 6.5 | Battery Voltage: | 24-72 |
| Running Time When Full Load: | 2.9-4.32 | ||
| High Light: | Flatbed Motorized Trolley Carts,1t Motorized Transfer Trolley,100t Motorized Transfer Trolley |
||

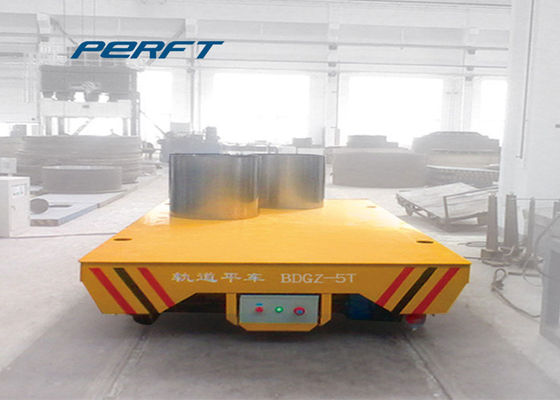

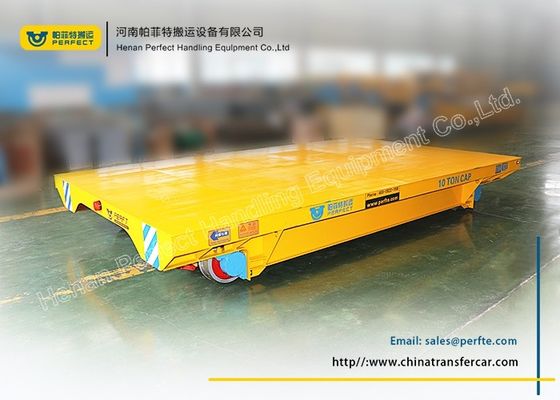

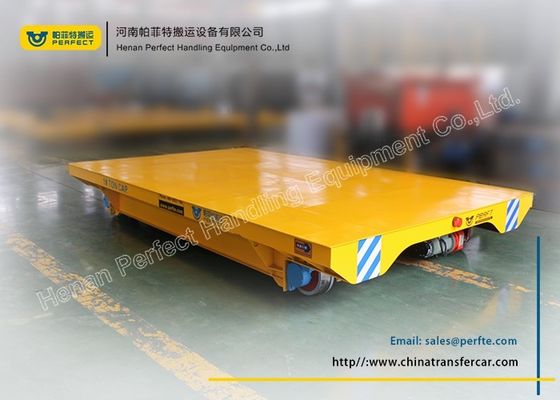

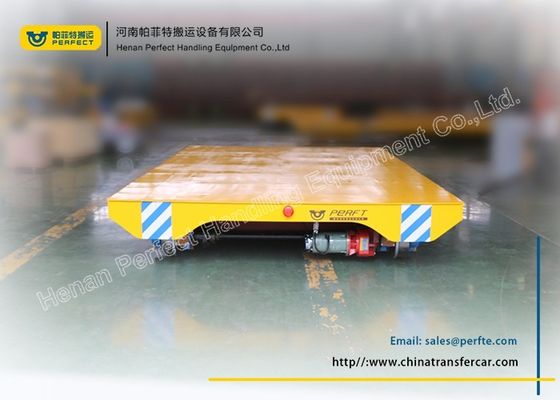

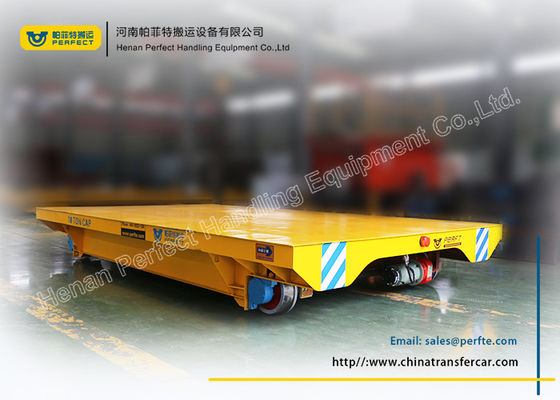

1-100T Stone mine use Customization color Motorized transfer trolley
Descraptions about serise cart
Our 1-100T Stone mine use Customization color Motorized transfer trolley series transfer cart is powered by batterry. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form tracks or curved tracks. We can also fit hydraulic lifting system if needed
Analytical graph
Customers
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way.
Technical Table
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
900 |
1200 |
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Company
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 to
ns, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
