Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Battery Transfer Cart | Powered Source: | Storage Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | Customized | Color: | Yellow/Customized |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Parameter: | Customized |
| High Light: | flatbed heavy duty plant trailer,customization heavy duty plant trailer,warehouse steel plant trailer |
||

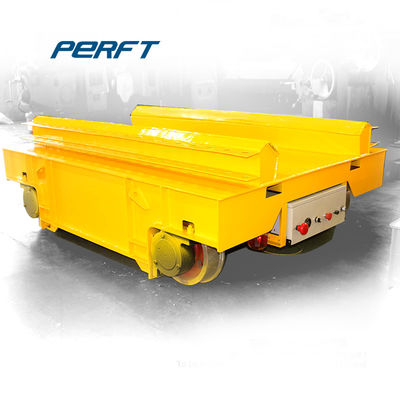

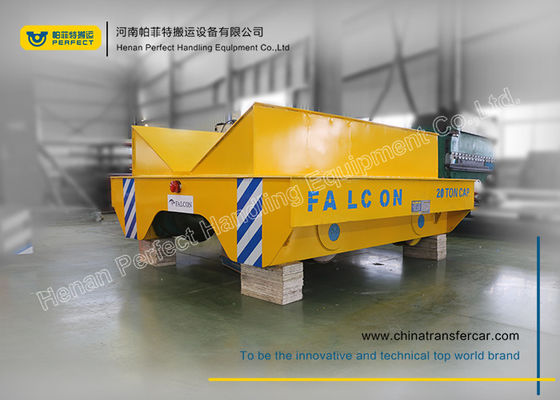

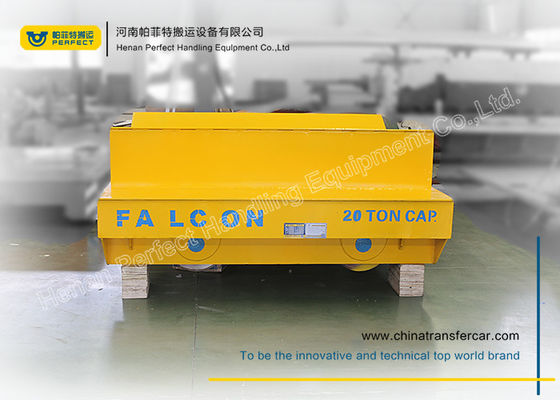

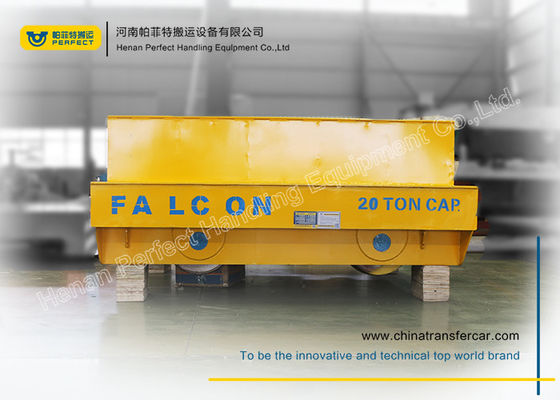

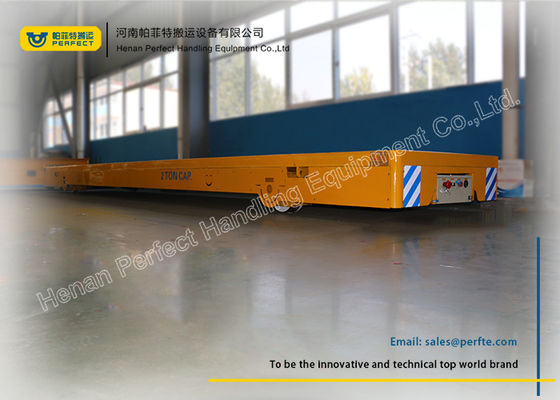

Introduction
This trailer is a special design product in our company. The cart body can be devided into many parts on the the condition of the car strength and appearance aren't influenced.Different parts are connected by marked NO plates and bolts, which make the transportation convenient and cost low. Meanwhile, it can easily put into container and save the sea freight for client. The kind of design has been widely applied and solve client's transportation difficulty. There is no doubt it is a googd choice for you to save money.
Application Site Of Heavy Duty Plant Trailer
Our Products are widely used in many kinds of workspaces. Where there is need to transfer cargoes from one place to another, there maybe you need our products. The loads of our cart can up to 300Ton, the load capacity could customize according to you demands. These workshops are always need our product such as assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).We promise to supply the perfect scheme for you.
Parameter table
|
Model
|
Bxc-2T | Bxc-10T | Bxc-20T | Bxc-30T | Bxc-50T | Bxc-63T | Bxc-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Our Team
We are a collection of research and development,design,manufacturing as one of professional international manufacturing company of handling equipment in China.We have over 15 years experience in this fields and have got 8 national patents with innovative products.Recent years, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators. Welcome to visit our company and factory, we are all glad to see you here.
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
