Henan Perfect Handling Equipment Co., Ltd.
Home ProductsRail Transfer Cart

Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport

China Henan Perfect Handling Equipment Co., Ltd. certification
China Henan Perfect Handling Equipment Co., Ltd. certification
Generally we are very satisfy with functionality of trailers and I would like to thank you for your good support and communication!

—— Tomislav Blazeka

Your solution is very convincing to me and we are looking forward to build the experimental and commercial drying plant with your equipment.

—— Veronica Cardenas

The experience we had was really remarkable and the equipment is found very good.

—— FAO Adam Fisher

I'm Online Chat Now

Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport

Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport
Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport

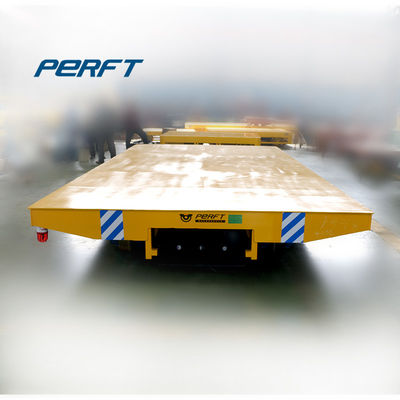

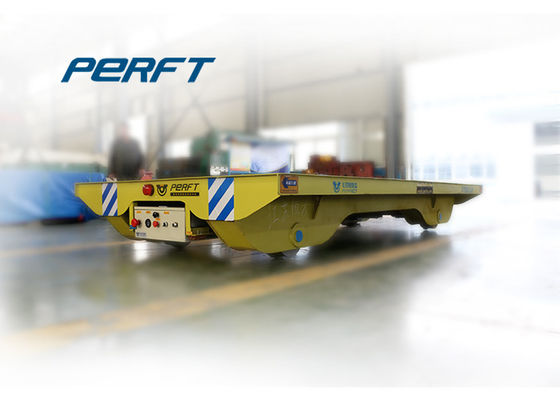

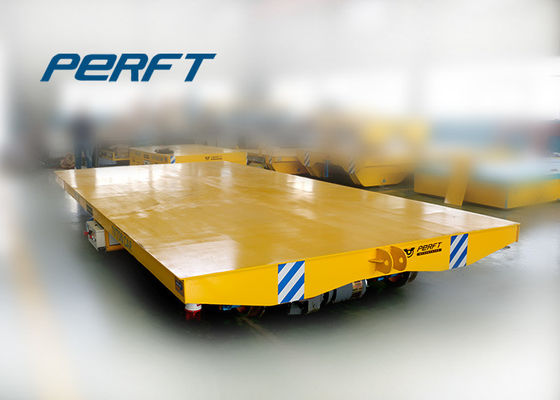

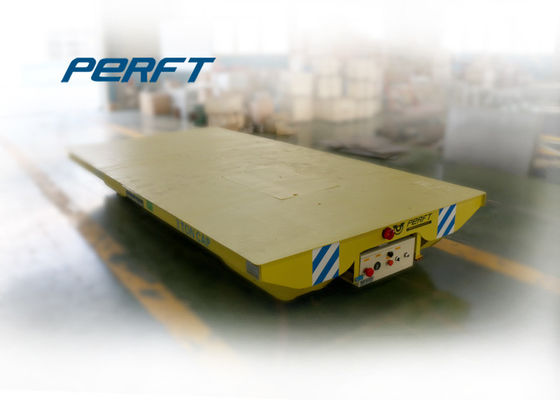

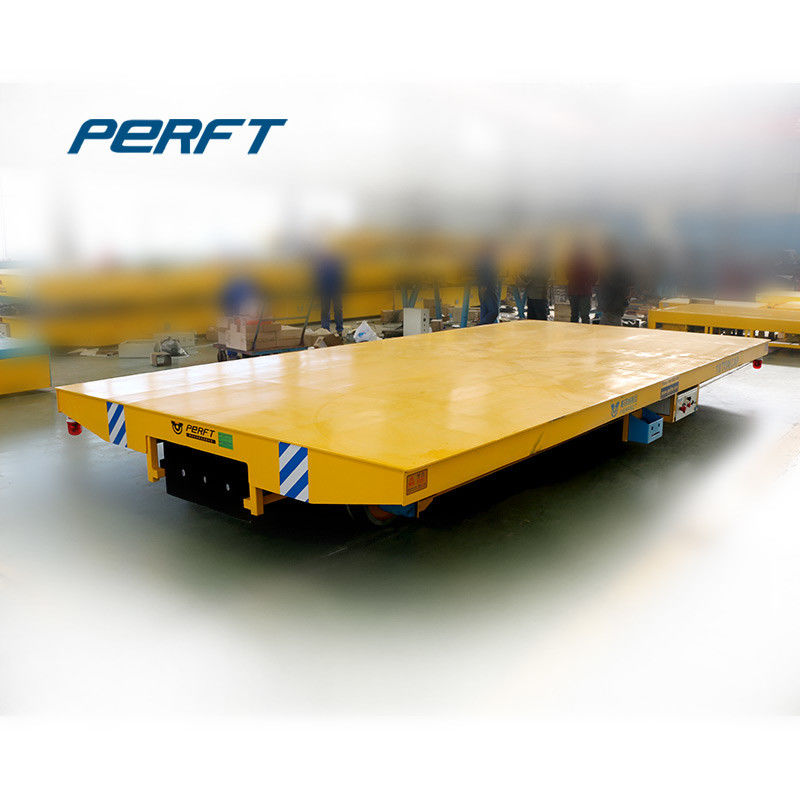

Large Image :  Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport

Product Details:
Place of Origin: Henan China
Brand Name: Coil Rail Transfer Cart
Certification: CE ISO SGS
Model Number: Coil Rail Transfer Cart
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD:5000-9000/set
Packaging Details: Trap and Wooden Case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Product Name: Coil Rail Transfer Cart Electric Material Battery Operated Coil Transfer Cart Industry Transfer Car Type: Coil Rail Transfer Cart
Wheel Base(mm): 1200-7000 Ground Clearance(mm): 50
Running Speed(m/min): 0-15 Wheel Diameter(mm): 270-600
High Light:

warehouse rail transfer cart

,

transport rail transfer cart

,

material handling rail transfer trolley

Top quality Material Handling Transfer Trailer for Warehouse Coils Transport





Customized of Coil Rail Transfer Cart:
PERFECT is specialized in designing and manufacturing of Coil Rail Transfer Cart:
Material handling equipment: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.



Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport 0

Introduction of Coil Transfer Trailer


PERFECT Coil Transfer Trailer are used to transport steel coils and pipes for metal industry. This Coil Transfer Trailer are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.



Componences

Coil Rail Transfer Cart Electric Material Battery Operated Coil Transfer Cart Industry Transfer Car



Technical Table

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
  Width(W) 1500 2200 2500 2800 3000
  Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity(Ah) 180 180 330 440 600
Battery Voltage(V) 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





Advantages of Coil Transfer Trailer


---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.



Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport 2

Packaging and Shipping


*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.

*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.

Material Handling Rail Transfer Cart Trailer For Warehouse Coils Transport 3
