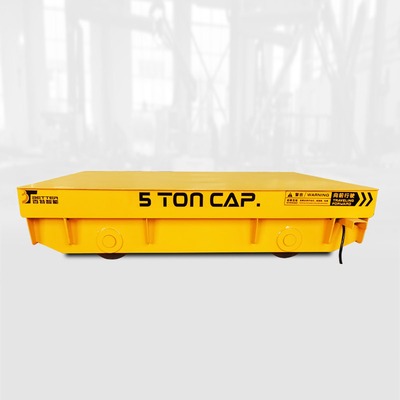

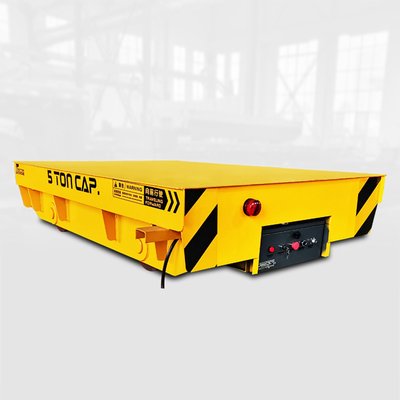

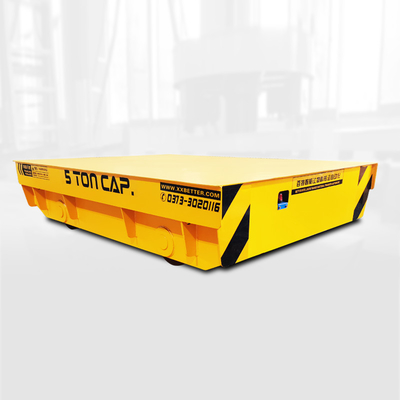

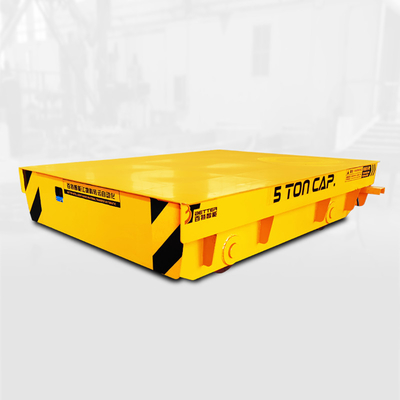

Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric

Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric
Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric

Large Image :  Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric

Product Details:
Place of Origin: Xinxiang, China
Brand Name: Perfect
Certification: CE, SGS, ISO
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The body will be packed with traps, and the parts will be put in small wooden cases.
Delivery Time: 45 Days
Detailed Product Description
Product Name: Factory Mold Transfer Trolley Color: Customized
Wheel Number: 4 Wheel Material: Cast Steel
Power Source: Storaged Battery Running Speed: 0-25m/min
Load Capacity: 1-300 Ton Ground Clearance: Customized
High Light:

heat resistant steel coil transfer trolley

,

low voltage operated coil transfer trolley

,

heat resistant steel coil transfer cart



Heat Resistant Steel Coil Low Voltage Operated Electric Coil Transfer Cart





Introduction



PERFECT Electric Coil Transfer Cart are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Electric Coil Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The coil heavy load transfer cart is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.



Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric 0



Process Technology

1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging



Applications



Uses of Electric coil transfer cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Heat Resistant Steel Coil Transfer Trolley Low Voltage Operated Electric 1

Parameters

Model BXC-2t BXC-20t BXC-50t BXC-100t
Rated Load(t) 2 20 50 100
Table Size (mm) Length(L) 2000 4000 5500 6500
Width(W) 1500 2200 2500 2800
Height(H) 450 550 650 900
Wheel Base(mm) 1200 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 200
Wheel Diameter(mm) 270 350 500 600
Wheel Quantity 4 4 4 4
Ground Clearance(mm) 50 50 50 75
Running Speed(min) 0-25 0-20 0-20 0-20
Motor Power(kw) 1 2.2 5 10
Battery Capacity 180 180 330 440
Battery Voltage 24 48 48 72
Running Time When Full Load 4.32 4 3.3 3.2
Running Distance for One Charge(Km) 6.5 4.8 4 3.8
Max Wheel Load(KN) 14.4 77.7 174 343.8
Reference Weight(t) 2.8 5.9 8 14.6
Recommended Rail Model P15 P24 P43 QU100



Q/A



Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
