Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transfer Cart With Turnplate On Rail | Capacity: | 1-300 Ton |
|---|---|---|---|
| Running Speed: | 0-20m/min | Color: | Customized |
| Material: | Q235 | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | rail archives material handling turntable,360 free rotation material handling turntable |
||

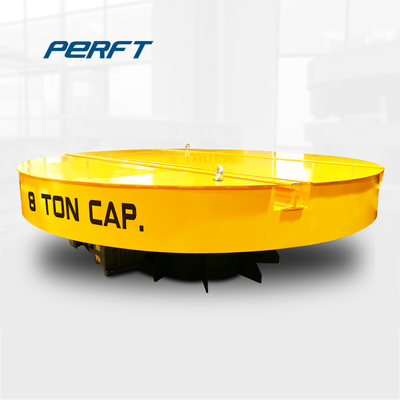

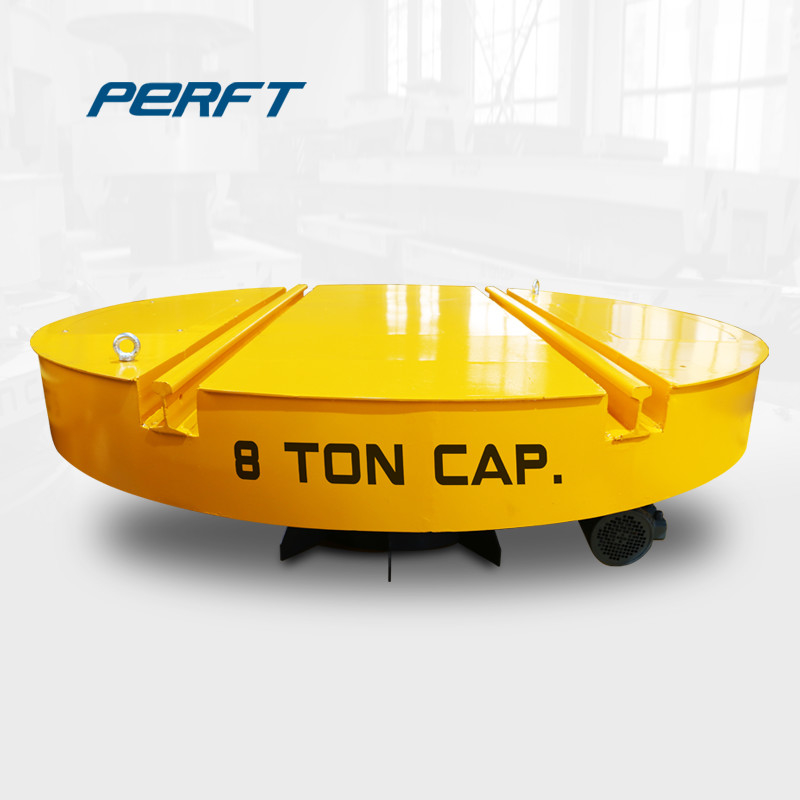

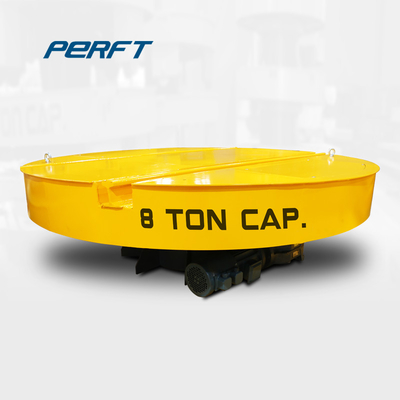

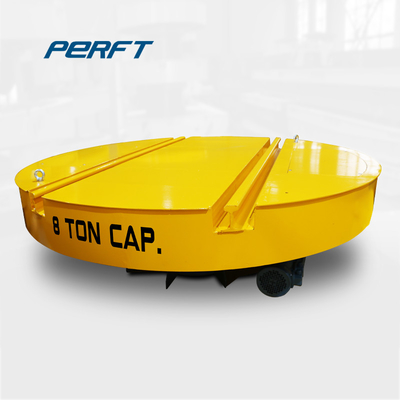

360 Degree Free Rotation turnplate on rail achieves Material Handling Turntable
Product Description
The rotation transfer bogies are designed for crossing rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.
Productions include
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Product Details
DC drive, no cable, low frequency, unrestricted transportation distance. Use time is not more than 8 hours a day, transport distance is relatively long, equipped with ordinary rail working occasions. Battery track flat car is known for its simple operation, easy use, no distance restriction, no weather impact, and its load tonnage can also reach more than 300 tons. It is a popular type of car for workshop transshipment and warehouse logistics.
Parameter tables
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 |
QU100
|
|
