High Temperature Iron Ladle Free Turning Motorized Trackless Die Transfer Vehicle

Name: High Temperature Iron Ladle Free Turning Motorized Trackless Die Transfer Vehicle
Brand: battery powered electric flat cars on rail
SKU: battery powered electric flat cars on rail
Price: 2100 USD
Availability: InStock
Rating: 4.7 (196 reviews)

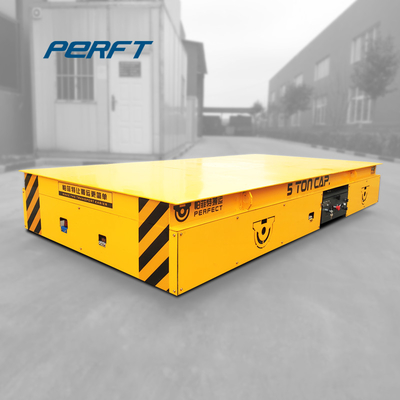

Large Image : High Temperature Iron Ladle Free Turning Motorized Trackless Die Transfer Vehicle

Product Details:

Place of Origin:	China(mainland)
Brand Name:	battery powered electric flat cars on rail
Certification:	CE ISO SGS
Model Number:	battery powered electric flat cars on rail

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 2100~9000 set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 sets month

Contact Now

Detailed Product Description

Product Name:	Battery Powered Electric Flat Cars On Rail	Powered Source:	Battery
Capacity:	1-300T	Warranty:	12 Months
Color:	Customized	Application:	Industrial Filed
Feature:	Easy Operation
High Light:	Motorized Trackless Die Transfer Vehicle , Iron Ladle Free Die Transfer Vehicle

High Temperature Iron Ladle Free Turning Motorized Trackless Die Transfer Vehicle

Introduction

Perfect Material Handling offers a wide range of Die Transport Vehicle specifically designed for the unique needs of both stamping and molding. These products include Die Transport Equipment, Die Cart, and Die Transfer Trolleys and Die Trailers Systems.
This Die Transport Vehicle could run on railways or cement floor which is chosen according to the transportation route or clients' project plan. The selecting concept: the rail transport cart is mainly used for fixed route no need of rotation; while the trackless transfer trolley on cement floor can realize 360° direction turning.

Conveyer Railway Conveyer

ailway Conveyer Railway Conveyer Railwy Conveyer

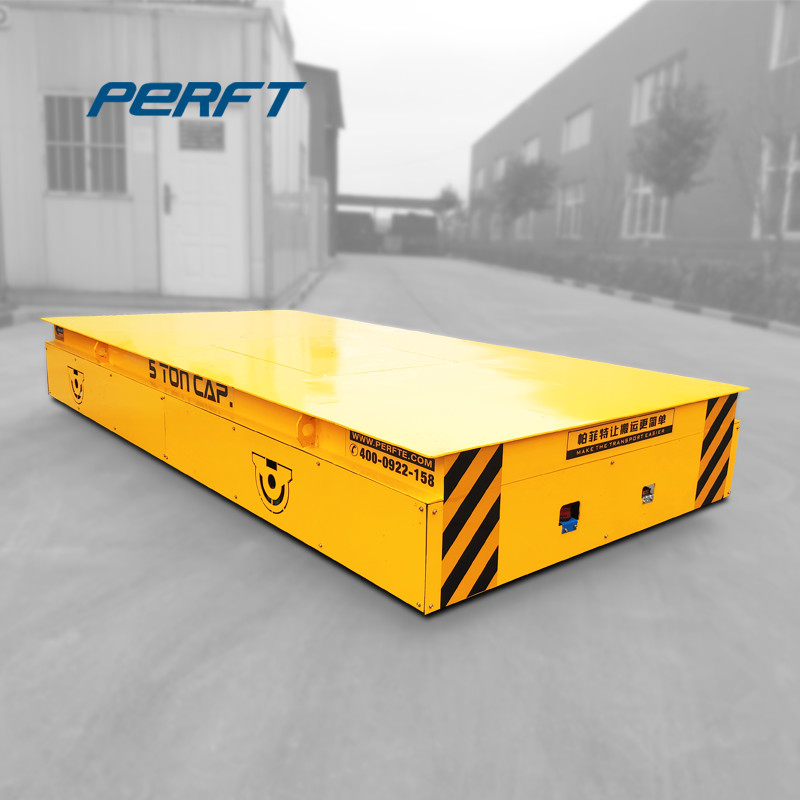

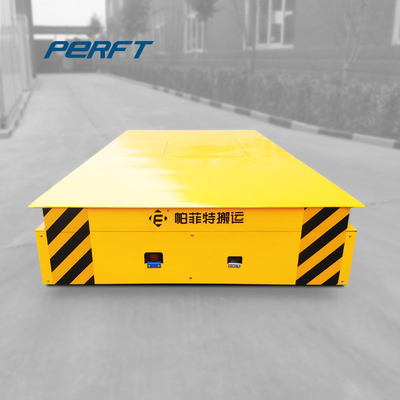

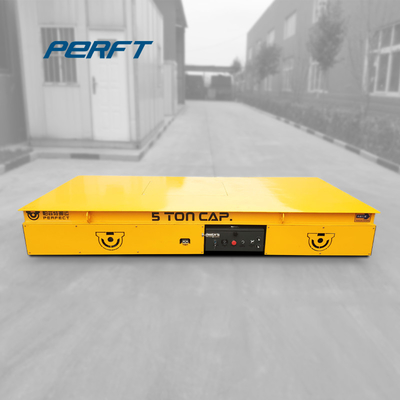

Detailed Image

battery powered electric flat cars on rail

Technical Parameters

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(Km)		6.5	4.8	4	3.8	3.2
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Application

The Die Transport Vehicle of PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and son on.

Processing

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.
