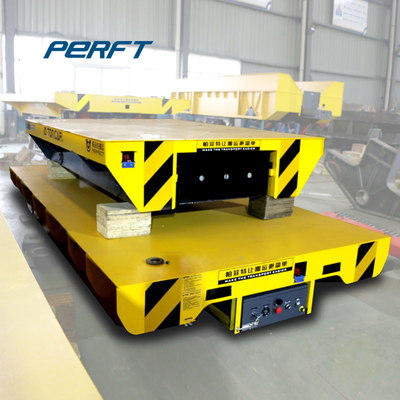

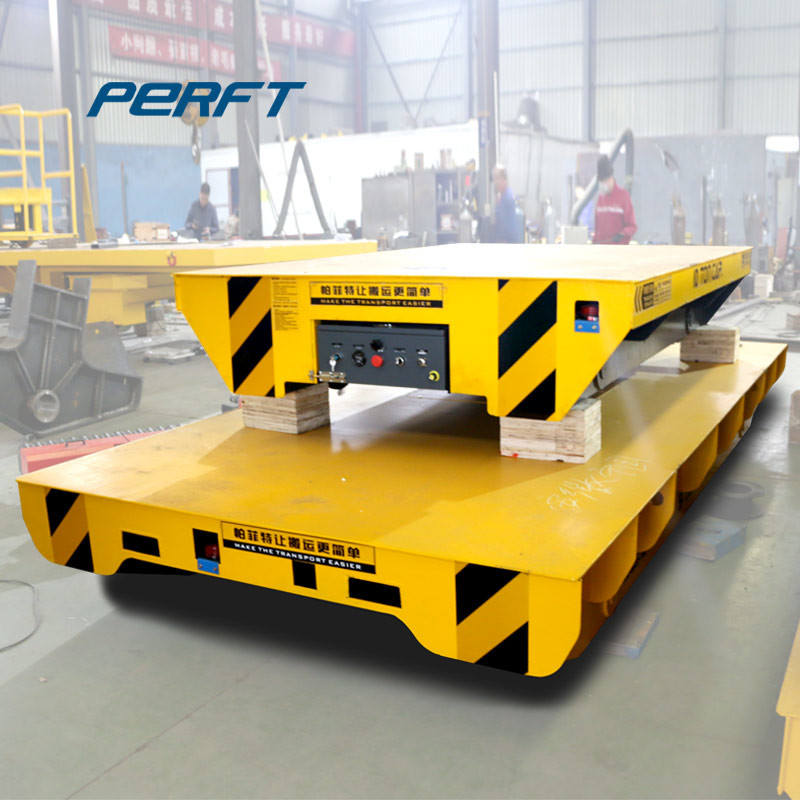

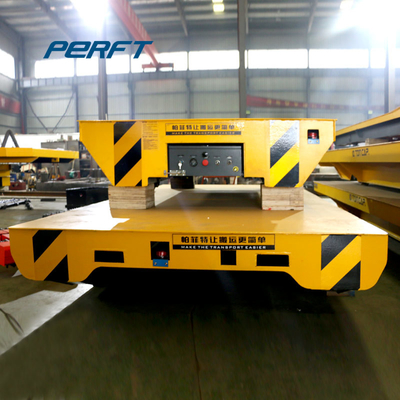

Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls

Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls
Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls

Large Image :  Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls

Product Details:
Place of Origin: Xinxiang, China
Brand Name: Perfect
Certification: CE, SGS, ISO
Model Number: BXC-20t
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets per month
Detailed Product Description
Product Name: Steel Coil Transporter Cart Power Supply: Battery Powered
Operation Mode: Pandent And Remote Controller Running Distance: Unlimited
Capacity: 20T Customized Application: Steel Factory
Warranty: 1 Year Color: YELLOW Customized
Wheel Type: Cast Steel Wheel Usage: Used For Transport Coils, Paper Rolls, Etc.
High Light:

30t coil transfer trolley

,

steerable coil transfer trolley

,

30t coil transfer cart

30T heavy load Steel Coil Steerable Cable Transfer Car Device With Optional Controls





Application about Coil Transfer Trolley​



We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!



Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls 0



Technical Parameter of Coil rail transfer trolley

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.5 5.6 7.8 14.1 26.2
Recommended Rail Model P15 P24 P43 QU100 QU100


Component of Coil rail transfer trolley



Coil rail transfer trolley



Packing and shipings

The body of the China rail transfer car is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Heavy Load Steel 30t Coil Transfer Trolley Steerable Cable Device With Optional Controls 2

Our Factory



Our factory is located in Xinxiang City, Henan province, where the Coil rail transfer trolley is manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high-quality machine, skilled workers and experienced engineers, we will supply the best Coil rail transfer trolley for you.
Service
  • Our commitment: The load bearing safety factor of the Coil rail transfer trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our Coil rail transfer trolley can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
