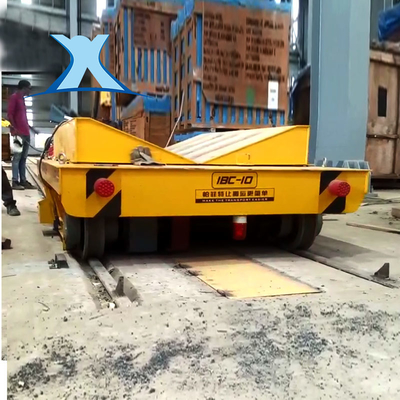

Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion

Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion
Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion

Large Image :  Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Storage Battery Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B Rail Gauge: 1435mm (Customized)
Color: Yellow/Customized Working Time: Whole Day
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Dimension: 2000*1500*400/Customized
High Light:

Coil Steel Pallet Transfer Carts

,

Engine Industry Pallet Transfer Carts

,

Anti Explosion Motorized Transfer Trolley

Engine Industry Coil Steel Pallet Transfer Carts



Product Description of Rail Transfer Trolley


Rail transfer trolleys are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
This kind of rail transfer trolley is equipped with protective railings which can prevent heavy cargos falling down. And the protective measures will significantly enhance our job security.

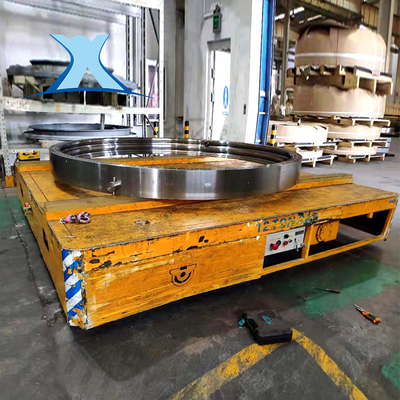

Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion 0

Application Sites

This kind of motor trackless flat dolly has a wide usage in various branches. For example: it can be used to transport mold in die factory and handling workpiece between bays. And also it used for finished coils transfer in workshops or used as a ferry vehicle to cross the trench.

The Main Parts---Motor Trackless Flat Dolly

The key components of our motor trackless flat dolly include: electric motor and equipment, gear reducer, flat dolly wheel (fixed wheels, swivel wheels), flat dolly frame, warning device, remote-controller, electrical appliance box, maintenance storage battery and transmission system etc.



railroad carriage



Technical Parameters



Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





Application Show of Rail Transfer Trolley


The Heavy Load Rail Transfer Trolley is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

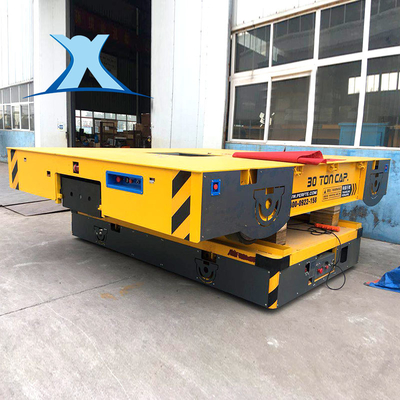

Engine Industry Coil Steel Pallet Transfer Carts Anti Explosion 2

Why Choose Us?

Our Motor trackless flat dolly powered by battery and traveling steady

Running on the straight railways or on the ‘S’ and arc-shaped railways to carry many material;

The motor trackless flat dolly is durable and can be used in the ferry condition, flammable, explosive environment

It is suitable for the long running distance transportation;

The hydraulic lifting device, roller support and many other facilities can be installed on Motorized transfer trolley;
