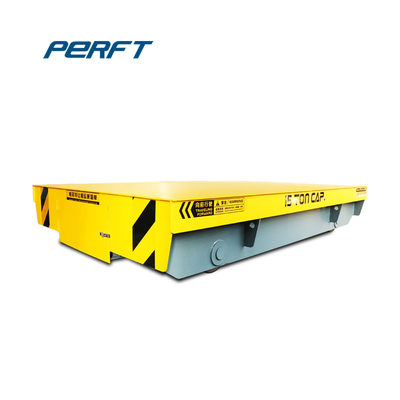

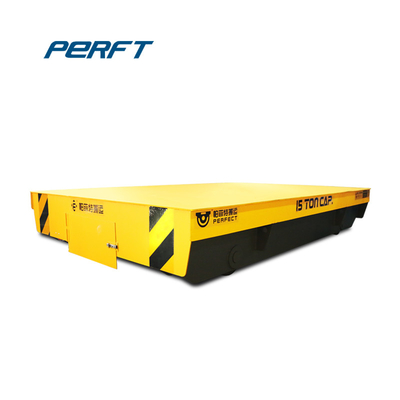

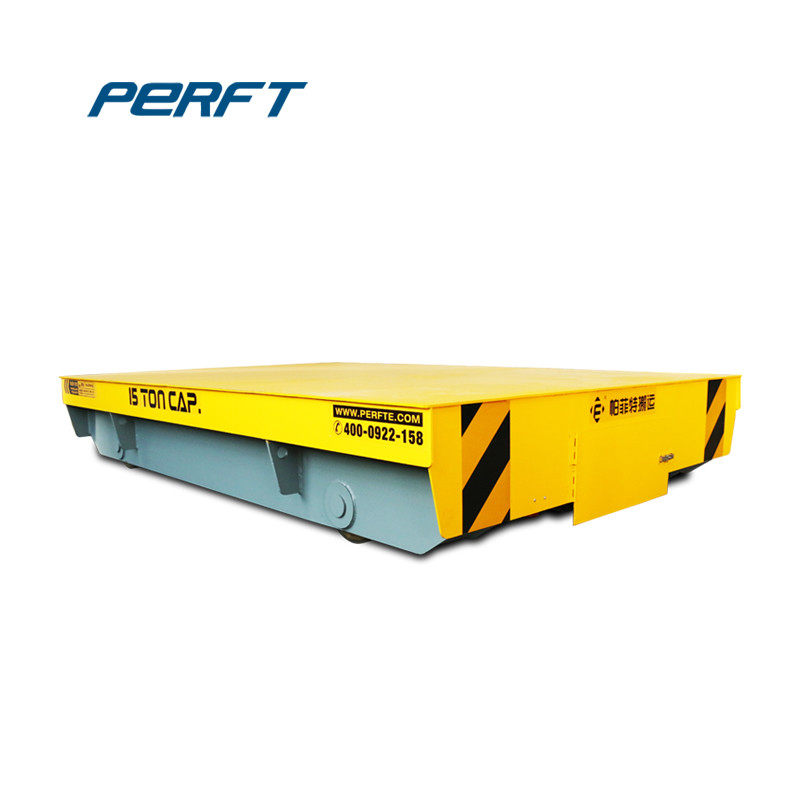

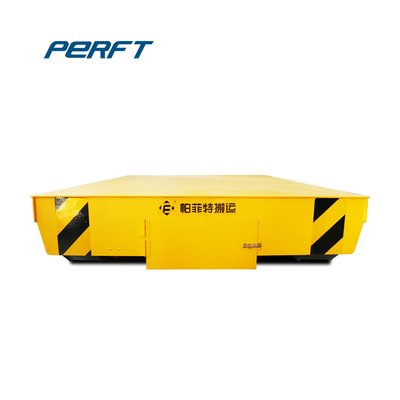

Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t

Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t
Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t

Large Image :  Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Storage Battery Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B Rail Gauge: 1435mm (Customized)
Color: Yellow/Customized Running Distance: No Limited
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Dimension: Customized
High Light:

Material Handling Rail Transfer Cart

,

Shipyard Steel Plate Rail Transfer Cart

,

Remote Control Pallet Transfer Carts 50t

Shipyard 50t Remote Control Steel Plate Material Handling Vehicles Rail Transfer cart



Product Introduction



Our battery powered material handling vehicle​ can be used for the horizontal movement of materials, assemblies, maintenance and other items. It is powered by storage battery, which is installed on the material handling vehicle​. This kind of battery powered material handling vehicle is manual guide handling machine equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 300 tons. Usually it is used to accommodate the needs of a wide range of industries including steel, aluminum, automotive, heavy manufacturing, ship assembly & maintenance others.



The advantages of Transfer Cart

  • Suitable for frequent use
  • Not limited by tonnage
  • It can be used in high temperature and explosion-proof environment.
  • Not limited by time
  • Low cost of track laying
  • It can be used in S-shaped and arc-shaped tracks.
  • Can be fitted with V-frame, roller frame, hydraulic pressure
  • Box girder structure with a high bearing coefficient
  • Using the handle and remote control operation, the operation is simple and reliable.



Technical Parameters



Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100



Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t 0



Transportation



*For length is less than 6m, the width is less than 2.2m. Electric Rail Vehicle will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Rail Vehicle needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.



Why Choose Us?



We are professional and experience for material handling equipments design, manufacturer, selling and exporter meanwhile we also design material handling solution according to per client's demand.
Our products include rail transfer cart, trackless transfer car, battery powered transfer cart, traverse, transfer table, turn-plate, ladle transfer cart, coil handling vehicle, ferry cart for perdenticular railroads etc. Our products have passed the authentication of Quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial standard JB/T61 27-10.
