Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil Transfer Trolley For Industrial Coils Material Handling On Rails | Running Speed(m/min): | 0-25 |
|---|---|---|---|
| Wheel Quantity: | 4 | Wheel Base(mm): | 1200-7000 |
| Rail Inner Gauge(mm): | 1200-2000 | Motor Power(kw): | 1-15 |
| Running Time When Full Load: | 4.32 | ||
| High Light: | SGS Industry Heavy Coil Transfer Trolley,Wireless Remote Control Coil Transfer Trolley,Die Carton Rail Transfer Trolley |
||

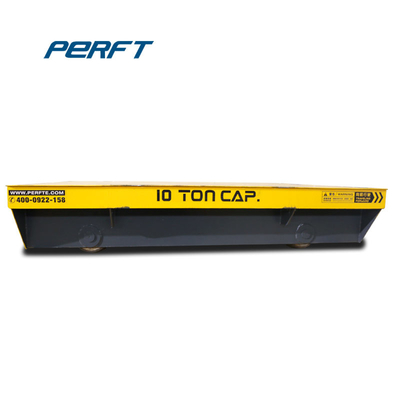

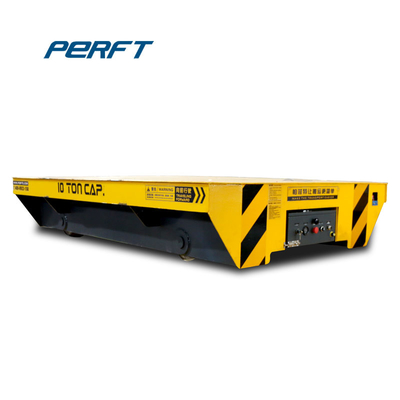

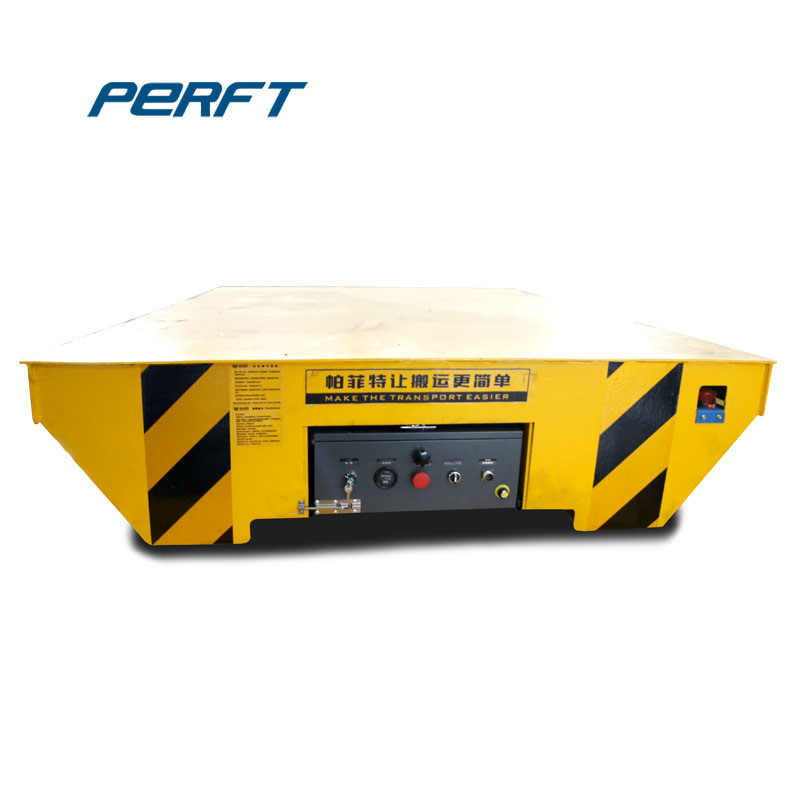

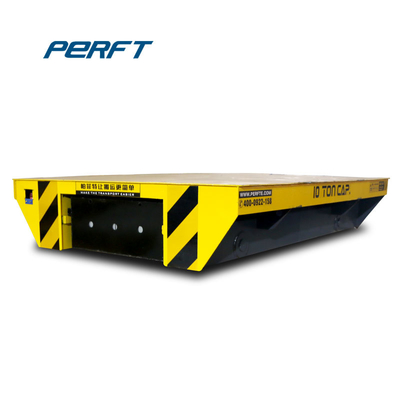

Coil Transfer Heavy Industry Trolley Die Carton rails
Introduction
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Advantages
1. Powered by battery,cable and low-voltage track.
2. No harmful to the cemment floor.
3. Can add V-shaped to prevent coils falling from cross transport.
4. The V/U shape can be remove freely.
5. Wireless remote control.
6. The capacity and table size can be customized.
Main components
Technical parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
Customizable
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel Base,Detachable structure etc.
Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.
