Product Details:
Payment & Shipping Terms:
|
| Product Name: | 16 Ton Industrial Steel Coil Rail Transfer Trolley For Coils Transport | Running Speed(m/min): | 0-25 |
|---|---|---|---|
| Motor Power(Kw): | 0.8-15 | Wheel Quantity: | 4 |
| Wheel Base(mm): | 1200-7000 | Table Size: | Customized |
| Color: | Customized | ||
| High Light: | 25T Workshop Railway Cart,Coils Transport Railway Cart,25m/min Coil Transfer Trolley |
||

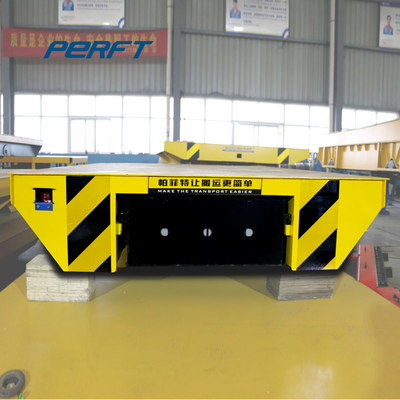

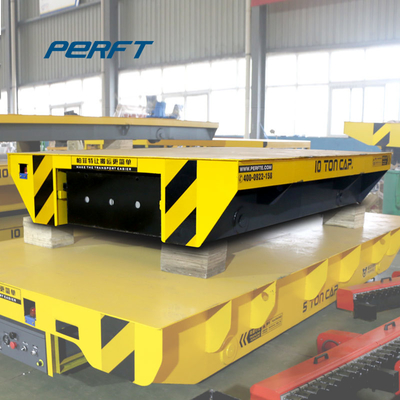

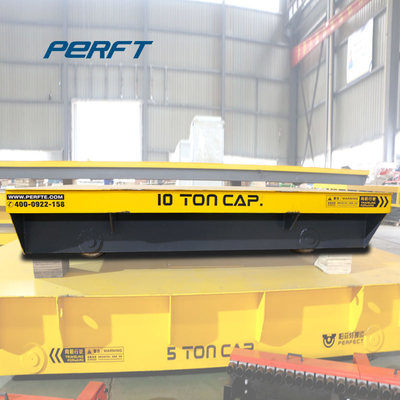

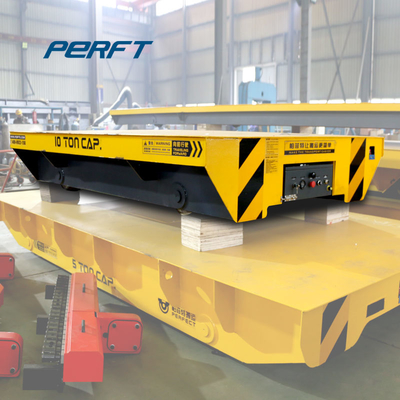

25 ton Customization color Workshop Railway cart for coils transport
Descraptions
Our factory material handling equipment can be used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. It also can be used in the ferry condition and flammable, explosive environment, the hydraulic lifting device can be used installed on such kind of material handling equipment. In addition, the material handling equipment is suitable to be used in the long running distance transportation and low using frequency.
Due to the battery powered factory material handling equipment has no strict requirement for the construction of the railway, it has become a competitive handling tool which has been widely used in factory,manufacturing shop, assembly line, shipyard,warehouse etc.
Advantages
• Extra inverter to choose any speed;
• Rail self disconnect electricity device;
• Met people stop device, limit location device;
• Equip with wireless remote control;
• Special device suitable for explosive environment;
• Optional brush DC motor, brushless DC motor;
• Special device suitable for high temperature situation;
• Table size according to client's Requirement;
Technical parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Working Principle of Factory Material Handling Equipment
The battery powered series factory material handling equipment, by contrast, has plenty of advantages: safety,flexible,cost-effective etc. The battery is installed in the handling equipment. The battery supply electricity to the DC motor through the electrical control system to make the handling equipment start, stop, go forward and backward, and the speed can be adjusted at the same time, besides that, many other functions can also be conducted by the aid of this kind of principle.
