Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse

China Henan Perfect Handling Equipment Co., Ltd. certification
China Henan Perfect Handling Equipment Co., Ltd. certification
Generally we are very satisfy with functionality of trailers and I would like to thank you for your good support and communication!

—— Tomislav Blazeka

Your solution is very convincing to me and we are looking forward to build the experimental and commercial drying plant with your equipment.

—— Veronica Cardenas

The experience we had was really remarkable and the equipment is found very good.

—— FAO Adam Fisher

I'm Online Chat Now

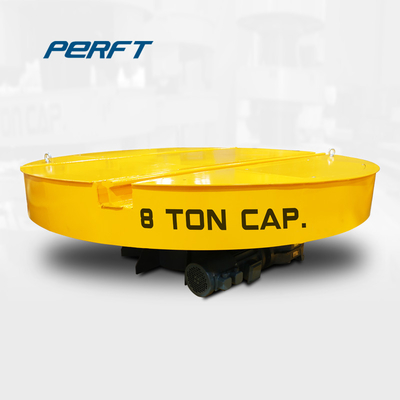

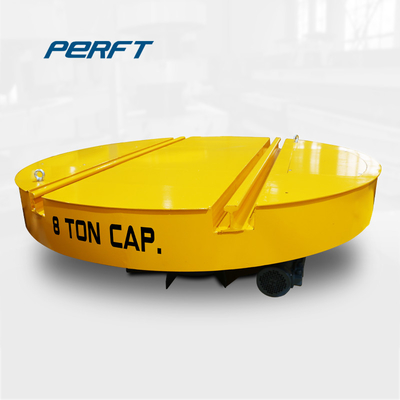

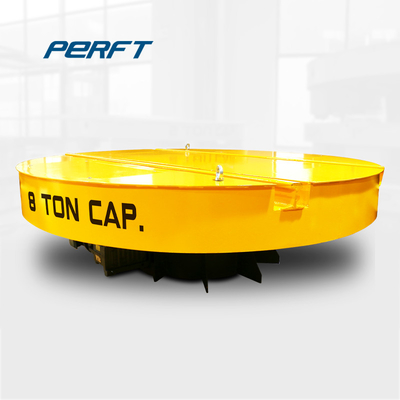

Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse

Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse
Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse

Large Image :  Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BZP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Cable Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B HS Code: 84289090
Running Distance: Unlimited Working Time: Whole Day
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Diamete: Customized
High Light:

Cross Rails Motorized Traverser Turntable

,

100T Motorized Traverser Turntable

,

Warehouse Material Handling Turntable

1-100T Yello color Cross Rails Motorized Traverser/ Turntable for warehouse



The Introduction



The transfer turntable is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.



Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse 0



2.Mechanical Options Include
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)

─ Live Axle



Advantages



---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.



Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse 1



Product Parameters



BZP SERIES RAILWAY TURNTABLE TECHNICAL PARAMETER LIST
Model BZP
Power Supply Mode Cable
Platform Diameter(mm) 3000/Customized
Loading Capacity (t) 1-150/Customized
Turning speed (RPM) 0.8-1/Adjusted
Turning Angle Any 360 degree
Material ZG55
Color Yellow/Customized
Operation Button/Remote control/PLC
Metal processing CNC Cutting



Application



PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
Cross Rails Motorized Traverser Turntable 1-100T Yellow Color For Warehouse 2

packing and shipping


*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
