Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Coil Transfer Trolley | Operation Mode: | Pendant And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Rail Gauge: | 1435mm (Customized) |
| Color: | Customized | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Additional Unit: | Cylindrical Container On Table/Customized |
| High Light: | Ladle Rail Transfer Cart,SGS Metal Sheet Rail Transfer Cart,Railway Guided Coil Transfer Trolley |
||

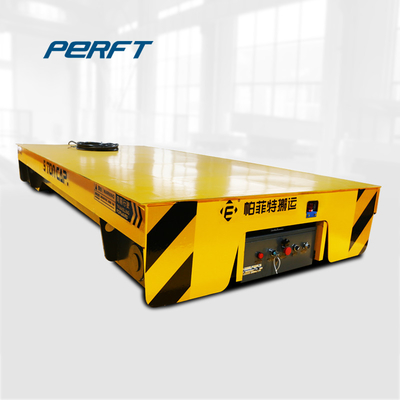

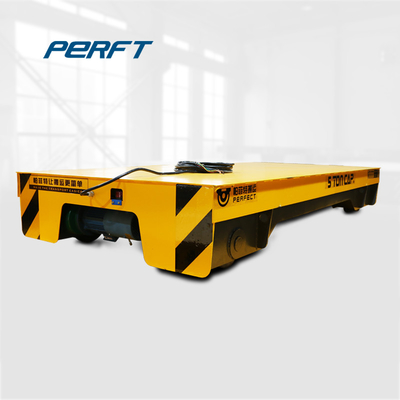

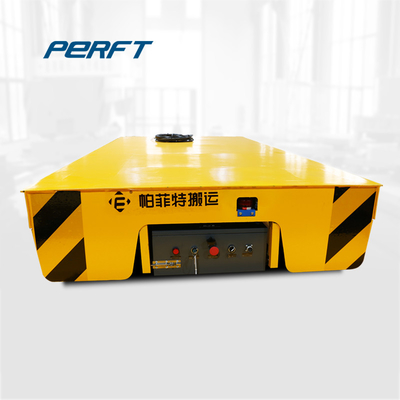

Industrial Trailer Ladle Rail cart Customized Color For Metal Sheet
Introduction of cart
Our cars permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.
Application of Cable Powered Transportation
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!
Parameter
|
Model |
BTL-2t |
BTL -20t |
BTL -50t |
BTL -100t |
BTL -150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
850 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Advantages of cart
Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Our team
We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.
Process Technology
1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging
