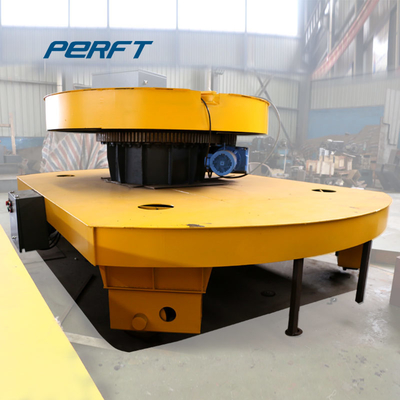

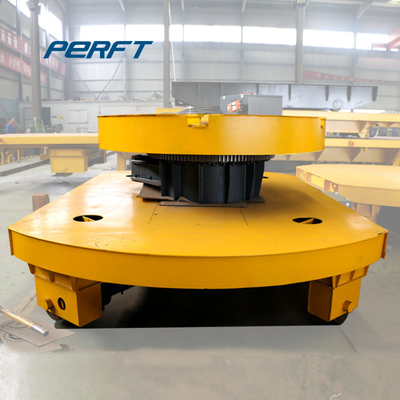

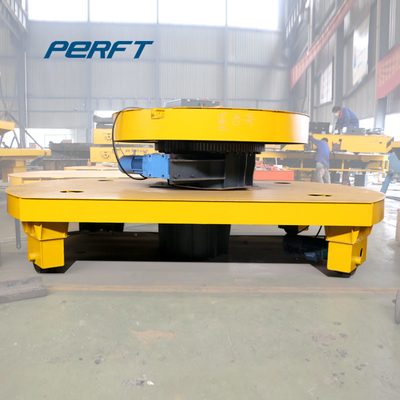

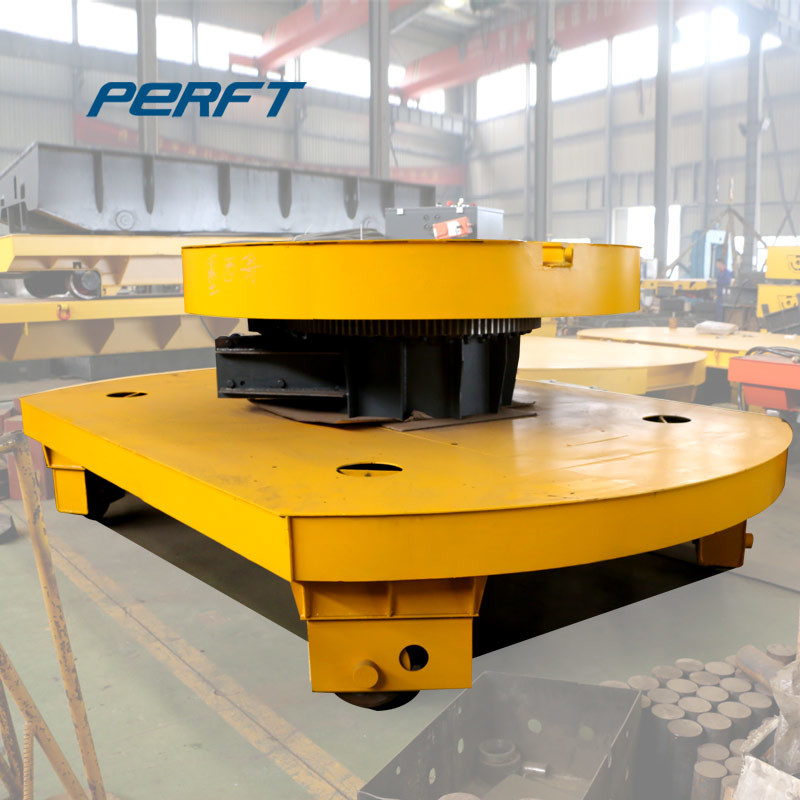

Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser

Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser
Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser

Large Image :  Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser

Product Details:
Place of Origin: Henan China
Brand Name: Perfte
Certification: CE ISO SGS
Model Number: BZP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000-5000/set
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Product Name: Heavy Load Rail Turntable Transfer Car-50t Transfer Cart For Plant Type: BZP
Capacity: 5-40T Wheel Quantity: 4
Material: Q235 Color: Customized
Usage: Heavy Duty Certificates: CE ISO SGS
High Light:

Transfer Car Rail Turntable

,

50t Heavy Loads Rail Turntable

,

Motorized Traverser Material Handling Turntable

Rail Turntable Transfer Car-50t Heavy Loads Carrier Motorized Traverser



Introdeuctions



The transfer turntable is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.

Transfer Car Rail Turntable 50t Heavy Loads Carrier Motorized Traverser 0


Multi-angle


Our turntables are custom-engineered and manufactured in different sizes according to the unique application. Our table turnplates are extremely rugged, well-balanced, and are suitable for the numerous requirements of transit and freight maintenance shops.
With minimal routine maintenance needed, our traverser turntables are known for their long-term reliability and safety. The turntables are available to rotate a single truck in 90° increments and can be either manual or motorized in their operation. The table traverser reduce the need for extended track turnabouts, and are motorized with a remote operator station for safe and easy use.


eavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant


Advantage



1.Stable driving
2.High accuracy of rail connection
3.Totally automatically operated
4.Convenient and flexible
5.Control panel with wire or romote control.


Technical parameters



Model BXC-2T BXC-20T BXC-50T BXC-100T BXC-150T
Rated Load(t) 2 20 50 100 150
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Running Time 4.32 4 3.3 3.2 2.9
Battery Voltage 24 48 48 72 72
Running Distance(Km) 6.5 4.8 4 3.8 3.2


Customer Visit

eavy Load Rail Turntable Transfer Car-50t Transfer Cart for Plant
