Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Color: | Yellow/Customized | Working Time: | Whole Day |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | 2000*1500*400/Customized |
| High Light: | Motor Trackless Material Handling Vehicle,Steerable Material Handling Vehicle,Q235B Pallet Transfer Carts |
||

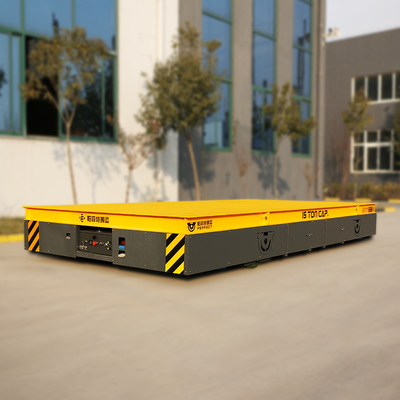

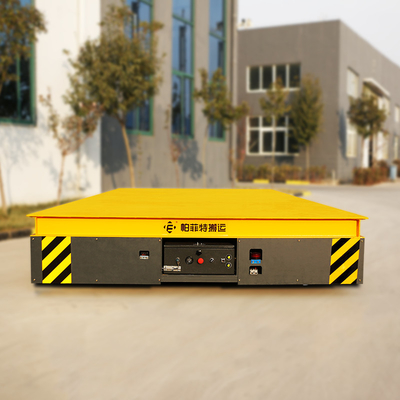

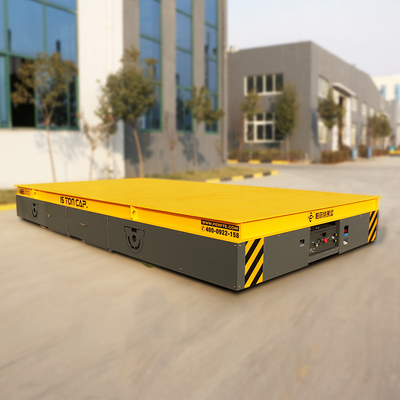

Product Introduction
PERFECT Electric Transport Platform are used to transport steel coils and pipes for metal industry. This Electric Transfer Platform are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The Electric Transport Platform is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
Application Sites
This kind of motor trackless flat dolly has a wide usage in various branches. For example: it can be used to transport mold in die factory and handling workpiece between bays. And also it used for finished coils transfer in workshops or used as a ferry vehicle to cross the trench.
The Main Parts---Motor Trackless Flat Dolly
The key components of our motor trackless flat dolly include: electric motor and equipment, gear reducer, flat dolly wheel (fixed wheels, swivel wheels), flat dolly frame, warning device, remote-controller, electrical appliance box, maintenance storage battery and transmission system etc.
Technical Parameters
| Model | BWP-2t | BWP-20t | BWP-50t | BWP-100t | BWP-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Why Choose Us?
Our Motor trackless flat dolly powered by battery and traveling steady
Running on the straight railways or on the ‘S’ and arc-shaped railways to carry many material;
The motor trackless flat dolly is durable and can be used in the ferry condition, flammable, explosive environment
It is suitable for the long running distance transportation;
The hydraulic lifting device, roller support and many other facilities can be installed on Motorized transfer trolley;
Advantages about cart
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
