Product Details:
Payment & Shipping Terms:
|
Product Name: | Steel Coil Transporter Cart | Power Supply: | Battery Powered |
---|---|---|---|
Operation Mode: | Pandent And Remote Controller | Running Distance: | Unlimited |
Capacity: | 20T Customized | Application: | Steel Factory |
Warranty: | 1 Year | Color: | YELLOW Customized |
Wheel Type: | Cast Steel Wheel | Usage: | Used For Transport Coils, Paper Rolls, Etc. |
High Light: | Liquid Steel Coil Transfer Trolley,Optional Automatic Control Coil Transfer Trolley,20T Coil Transfer Cart |

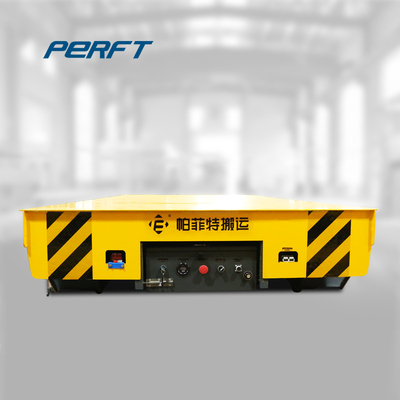

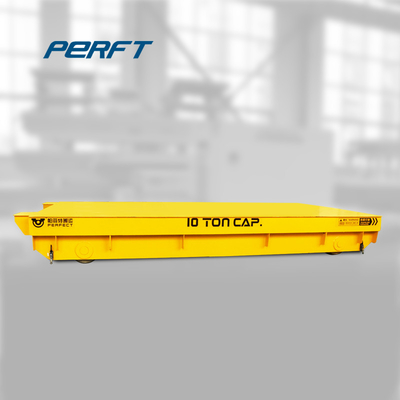

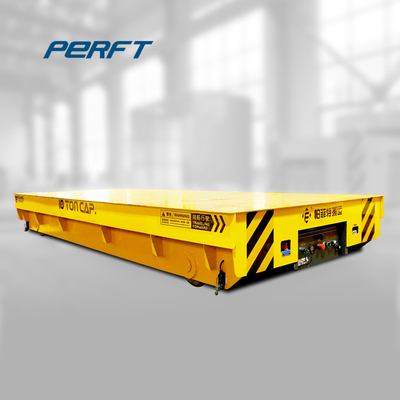

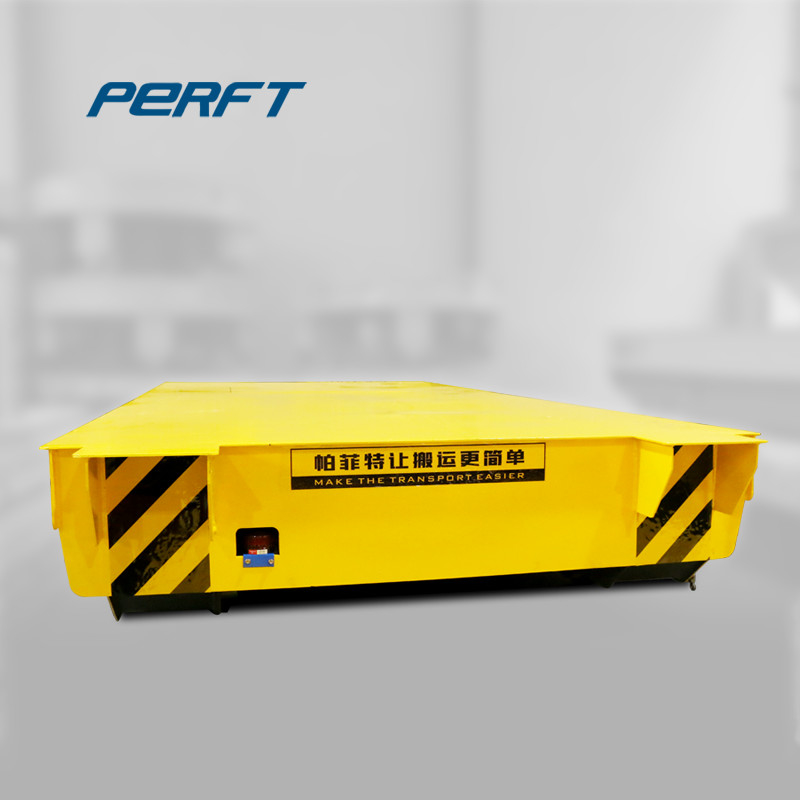

Steel Coil Liquid Steel Transport Car Heavy Duty with Optional Automatic Control
Introduction of Transfer Trolley
Our series ladle transfer cart is powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. The heat insulating material is used to prevent the high temperature. In case to handle emergency situations, two motors are assemlied in the car to make sure the machine works smoothly when one motor is broken.
NOTES:
Application
We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!
Model | 2t | 20t | 50t | 100t | 150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
