Product Details:
Payment & Shipping Terms:
|
Product Name: | Battery Powered Trackless Trolley | Powered Source: | Storaged Battery |
---|---|---|---|
Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
Load Capacity: | 1-200T (Customized) | Color: | Yellow, Customized |
Working Time: | 6~7 Hours | Wheel Type: | Polyurethane Coated Wheel |
Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
Highlight: | die handling equipment,powered trolley cart,Q235B Battery Powered Trackless Trolley |

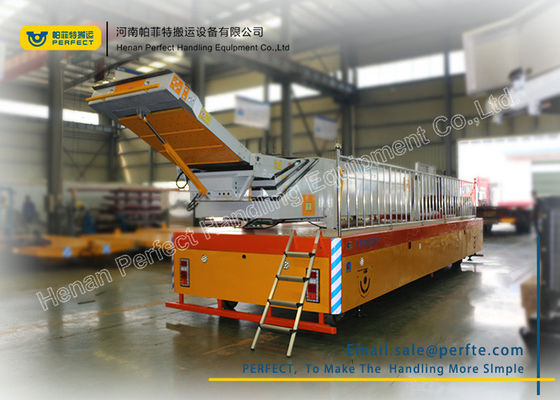

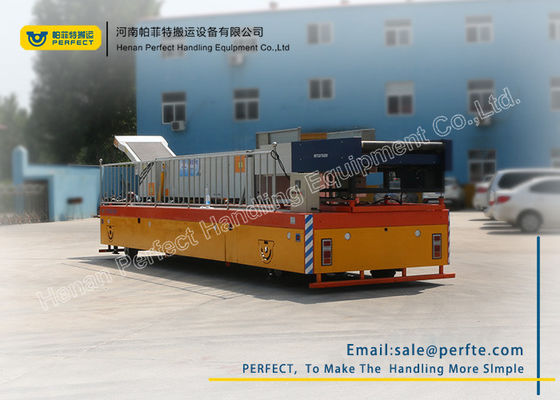

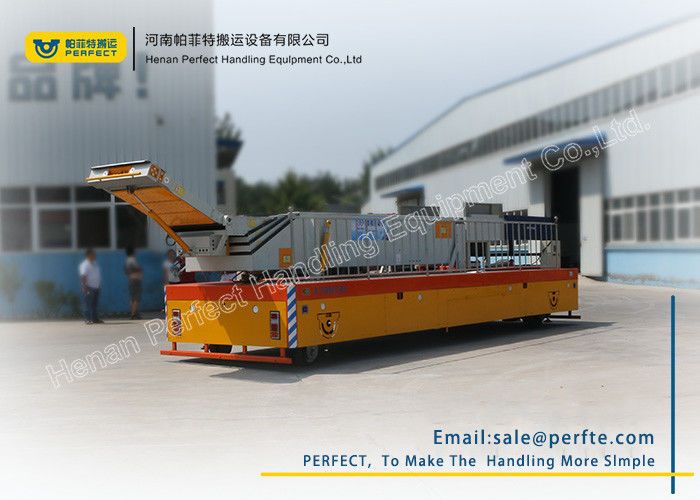

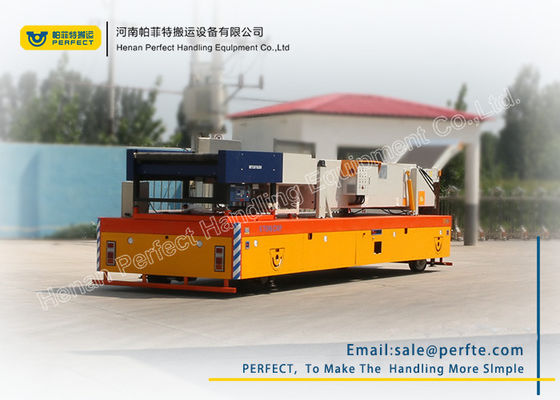

Introduction of Trackless Transfer Trolley
Our trackless transfer trolleies are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. According to clients' requests, we can provide different kinds of products you want.
Application Fields of Trackless Transfer Trolley
Our transfer trolleies are used in such lines as shipyards, chemical plant, automotive, mining industry, power generation, coal industry, paper mills, warehouse and many others. We assure to provide the product you want!
Customization of Trackless Transfer Trolley
Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.

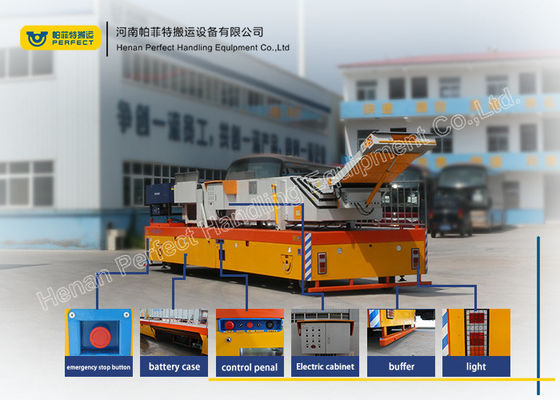

Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Parameters of Trackless Transfer Trolley
Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
Structure of Frame | Steel plates welded, beam | ||||
thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
Ground requirement | Cement floor or Steel plate ground | ||||
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
Turning type | Turning while driving with no stop | ||||
Control method for turning | Control button | ||||
Turning structure | Mechanical | ||||
Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
Wheel material | ZG55+hydropurture | ||||
Running speed (m/min) | 0-15 | 0-12 | |||
Brake principle | Electric magnetic brake | ||||
Ground balance | mechanical automatic adjustment | ||||
Operation method | With wire or no wire | ||||
Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
Battery maintenance | Free of maintenance | ||||
Charger's installation | Installed on cart | Split-type | |||
Cart color | Yellow and warning sign | ||||
Charger's function | Automatic stop for obstacles | ||||
Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
Warning equipment | Sound and light | ||||
Other functions | Turning light, night light and power display |
We make sure that the load bearing safety factor of the trolley is no less than 120%.Technical service and drawing material can also be provided.
Other Products
We are a professional company and produce many different series of steel frame trailers, coil transfer carts, battery powered carts, cranes and many other different kinds of products.
