Product Details:
Payment & Shipping Terms:
|
| Application: | Steel Industry, Factory, Warehouse, Port, Construction | Load Capacity: | (Customized) |
|---|---|---|---|
| Tow Mode: | Draw Bar | Guard Rails: | Optional |
| Cart Frame: | Q235B | Control Mode: | Towing |
| Running Distance: | Ulimited | Working Time: | Ulimited |
| Wheel Type: | Polyurethane Solid Wheels/Solid Tire Wheels | Color: | Yellow/Customized |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Power Mode: | Unpowered |
| High Light: | heavy load cart,heavy duty industrial carts |
||

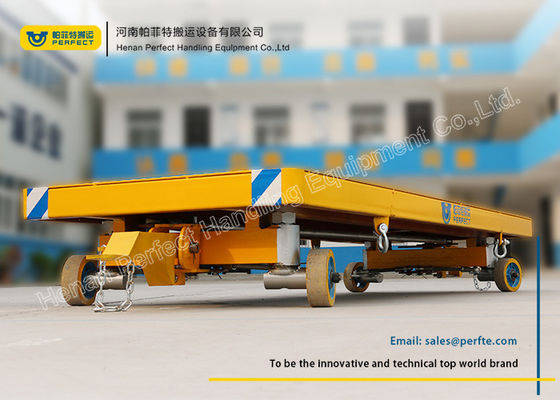

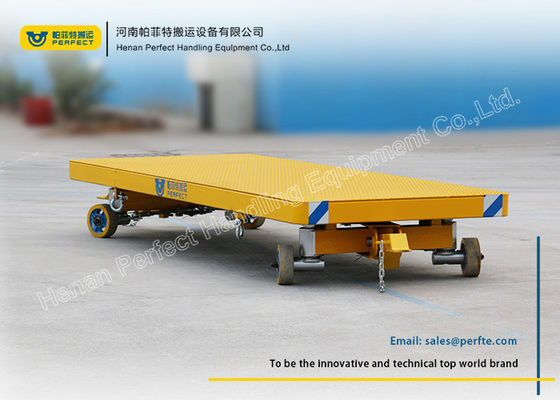

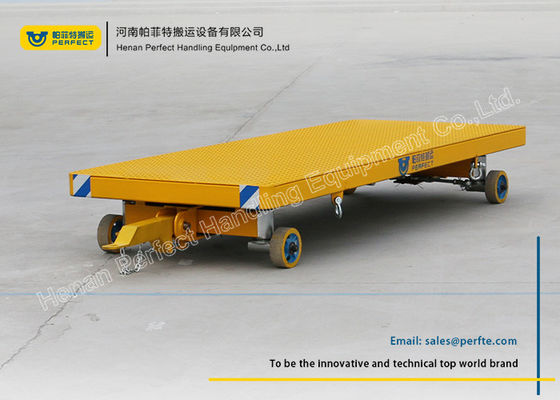

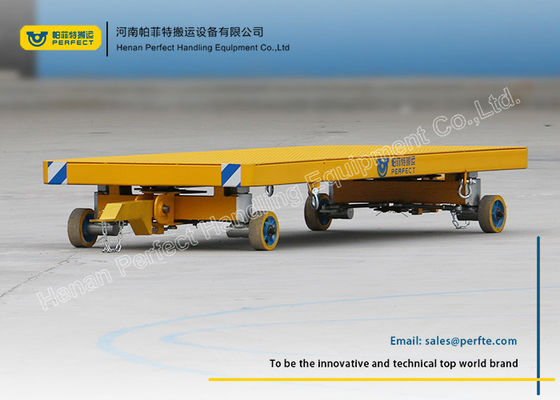

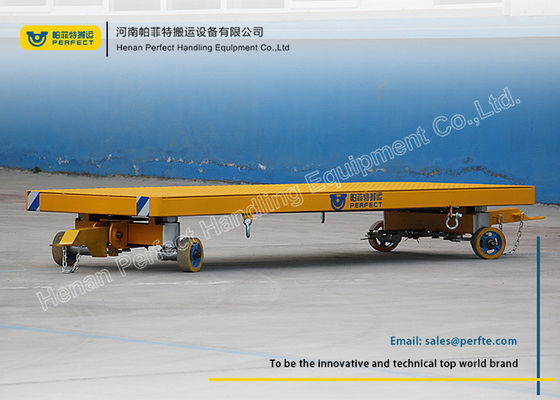

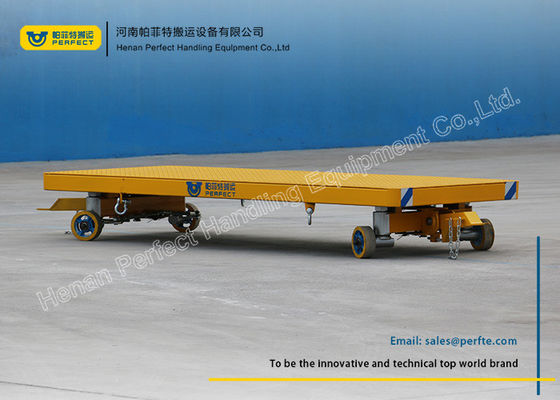

Introduction of Galvanized Industry Trailer
The galvanized industry trailer is our experienced product in Henan Perfect Handling Equipment Co., Ltd. It can be pushed by man power or towed by other car trailer including the forklift, winch, tractor electric transfer vehicle and so on. What's more, the galvanized industry trailer can be towed together, which can not only transfer more material but also save the cost with competitive price, especially the large capacity, we have rich experience to design with simple structure compared with other manufacturer. Many galvanized industry trailers have been customized as per customers' requirement.
Design Philosophy of Galvanized Industry Trailer
In order to meet the growing number of industrial transport demand, we design the kind of galvanized industry trailer, which makes the transporting more convenient and realized turning easily. What’s more, the safe protection has been done in many points, which not only promote safety factor but also get good assessment from our client all over the world.
Application of Galvanized Industry Trailer
The galvanized industry trailer has been widely used in all kinds of working conditions with no limited using frequency;
Application Fields: mold field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering etc;
Material transport: mould, boiler, coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet;
More Details of Galvanized Industry Trailer
Cart Frame
The cart frame is two longitudinal beam, several beams with steel panel welded together, formation box beam structure which has the advantages of large load bearing, little table deformation, long service lifetime;
Polyurethane coated wheel
About the Wheels, the material is Polyurethane coated wheel, inside is cast steel, outside is encapsulation. The main function of the design is damping. In our galvanized industry trailer, this kinds are also chose. And the wheel are manufactured and assemblied by ourselves.
Lifting Hole
The lifting hole are installed on the galvanized industry trailer for convenient transporting. Especially, it can be lifted and moved after the structure finished. What’s more, it makes the appearance more delicate and beautiful.
Towing bar or Towing Hook
About the towing device, one is the draw bar, the other is towing hook. All can be customized as per your requirement.
Specifications of Galvanized Industry Trailer
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
| Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Customized of Galvanized Industry Trailer
All the galvanized industry trailers can be customized as per customers’ requirement. And our business is meeting your business need, hope our professional team can help you well with rich experience.
RFQ
1.Q: Whether you product can be customized?
A: Sure. All our material transfer carts are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.
2.Q: How to ensure your product quality?
All spare parts of our material transfer carts are from famous brand or your Customized.
All spare parts of our material transfer carts are testing before assembly.
High quality automatic and manual welding.
Quality control supervisor do inspection before delivery.
3.Q: How about the delivery time?
A: Generally speaking, the delivery time is 45 days. But it depends on the quantity and products requirement, we will try our best to deliver it as soon as possible.
