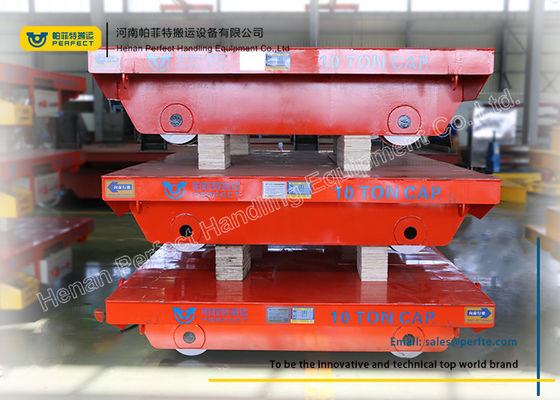

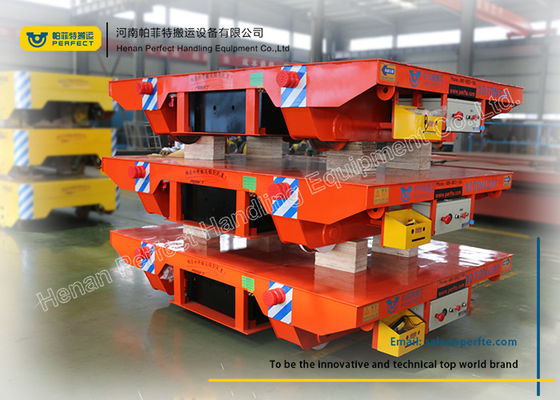

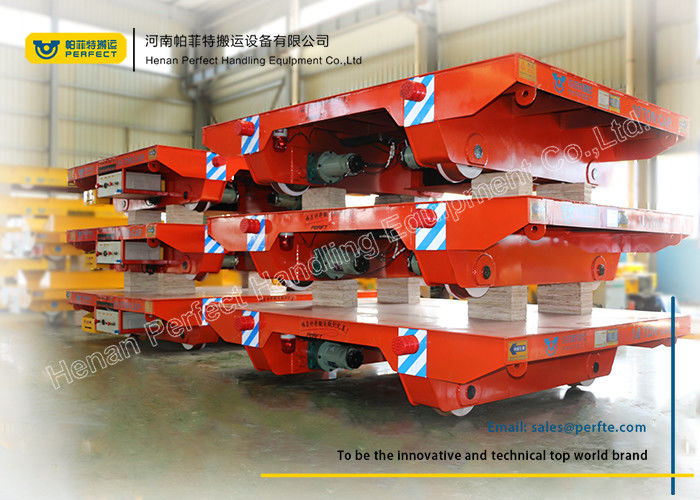

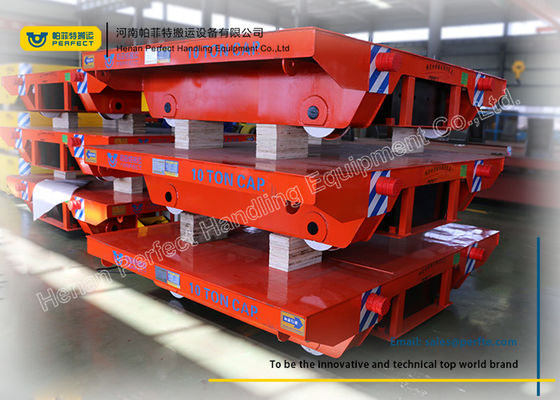

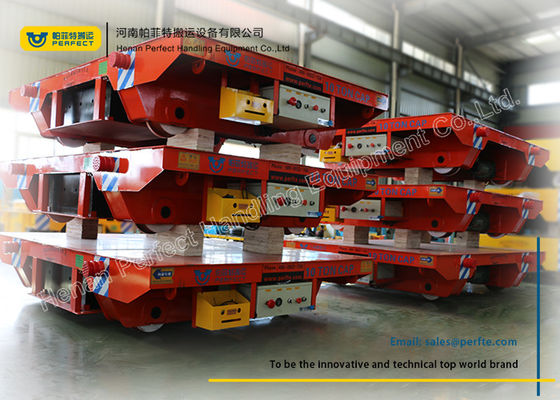

Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage

Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage
Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage

Large Image :  Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BXC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Storage Battery Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B Rail Gauge: 1435mm (Customized)
Color: Yellow/Customized Running Distance: No Limited
Wheel Type: Cast Steel Wheel Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons
Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling Dimension: Customized
High Light:

electric transfer cart

,

material transfer trolley

Mass Custom Assembly Line Motorized Transport Electric Steel Transfer carriage



Product Introduction---Electric Steel Transfer carriage​

Our electric steel transfer carriage​ is consist of steel structure frame, gear transmission system, wheels and safety device etc. We designed different wheels in order to let this kind of electric steel transfer carriage can running on rails or ground directly.

The electric steel transfer carriage​ is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles the load capacities up to 300 tons.

 According to your specific needs, we will provides you the most professional products. our electric steel transfer carriages are found in all sectors, with excellent craftsmanship and technical team we produce handling equipments for various industries and manufactures.



Application Sites---Electric Steel Transfer carriage​

This electric steel transfer carriage​ is commonly applied  for material and large facilities transportation in steel plant, aluminum factory, plastic pipes factory, chemical engineering, construction site etc from producing line to store or walking along the assembly line.
In order to ensure security and convenience, the fixing device or V-frame device can be added. It can protect the steel coils or other cargos fall down from the electric steel transfer carriage​ . According to diffenent using condition, the hydraulic lifting device can be installed.

Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage 0

Assembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage 1



Technical Parameters---Battery Powered Material Handling Vehicle​

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100




Advantages---Electric Steel Transfer carriage​

  • Running on the straight railways or on the ‘S’ and arc-shaped railways;
  • Load capacity up to 300tons;
  • Simple operation, safety, flexibility, long lifetime, cost effective and no pollution;
  • Variable speed
  • Warning light, dead man control, e-stop, buffer



More Details---Electric Steel Transfer carriage​

Cart Frame

The cart frame adopt Box girder structure which fabricated of two longitude girder and several beams and it has the advantages: table evenly bear force and not deform. Polishing, get rid off dust and make the appearance beautiful.

Wheels

Wheel material: cast steel 55. It can be casted or foundry as per client demand. It can be double collar wheel or single collar wheel type.

Driving system

Driving system include motor and reducer. Motor is DC motor and has the features: stable start, large start torque, samll impact to the reducer, low voltage, save energy and long service time.

The reducer is harden surface and has high mechanical transmission efficiency, low noise, easy installation and maintenance. Shafts mounted on speed reducer all rotate flexibly.

Battery

Optional in lead acid battery and free maintenance battery. 5-6 working hours with full load and continuous work and providing intelligent battery chargerAssembly Line Steel Motorized Transfer Trolley / Electric Transfer Cart Carriage 2





Why Choose Us?

  • We have a professional research staff and a excellent  sales team,can privede you a quick and professional reply.
  • Exclusive engineer support at any time, so we can design within 24 hours.
  • 12 Month warranty for whole material handling equipments, providing components free of charge.
  • Low charge for continue maintenance when warranty is expired.
  • we can produce the heavy duty carrying capacity upwards to 300 tons ,just give us your demand.
  • We can provide free training to end-users, don't worry about the installation.
  • Products are sold to more than 30 countries: Europe, North America, South America, Middle East etc
