Product Details:
Payment & Shipping Terms:
|

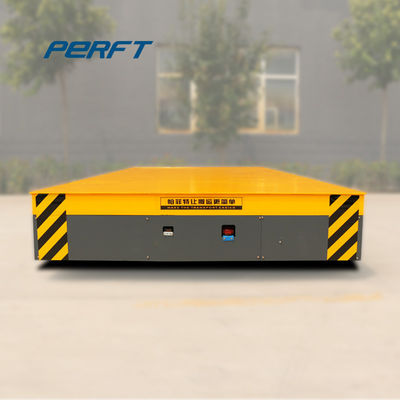

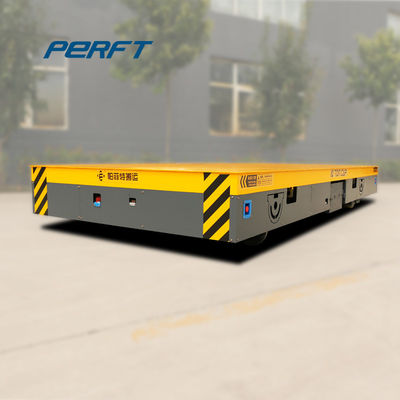

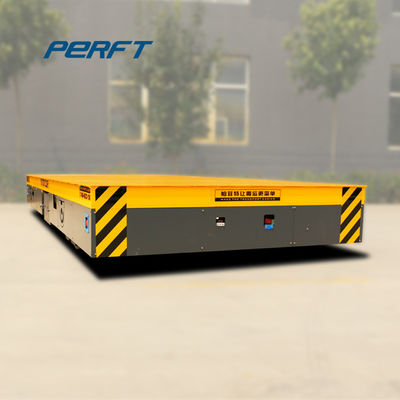

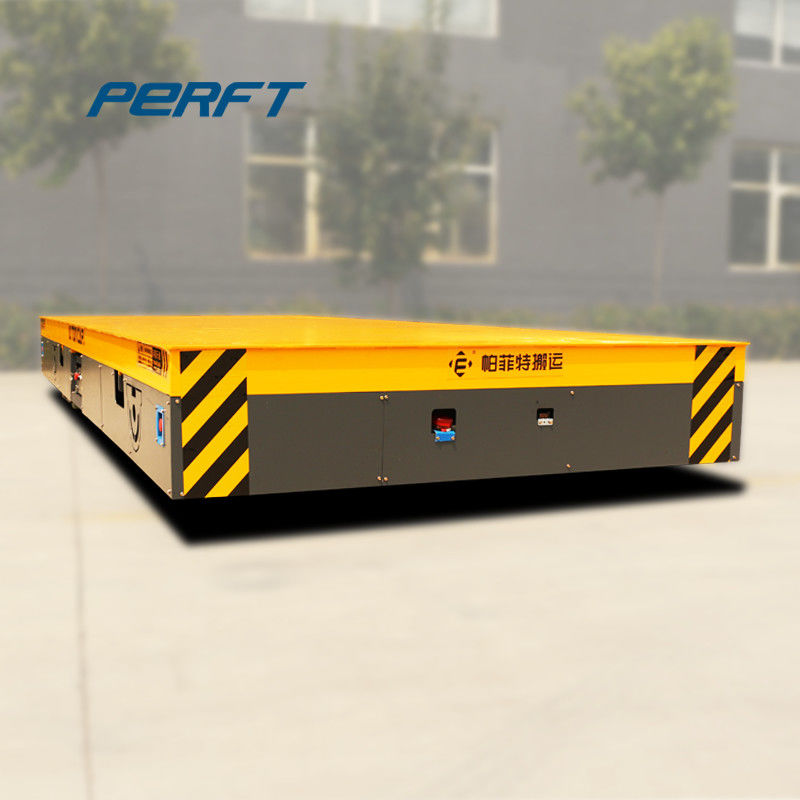

| Place Of Origin: | Henan, China (Mainland) | Product Name: | 30t Automated Trackless Transfer Cart |
|---|---|---|---|
| Color: | Customized | Capacity: | 1-300ton |
| Application: | Industrial Filed | Running Speed: | 0-20m/min |
| Power Supply: | Battery | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | 50t trackless transfer cart,remote control trackless transfer cart,50t trackless transfer trolley |
||
Advantage:
Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
| Technical Parameters for Electric Transfer Carts | ||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| 3 | structure of frame | steel plates welded,beam structure | ||||||
| 4 | thickness of the steel plate(mm) | 8 | 10 | 12 | 14 | 14 | 16 | 16 |
| 5 | cart weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| 6 | max. wheel load(t) | 2.8 | 4.6 | 4.3 | 5.6 | 7.7 | 10 | 12 |
| 7 | ground requirement | cement floor | steel plate ground | |||||
| 8 | table size(mm) | 3000x2000 | 3600x2000 | 4000x2200 | 4500x2200 | 5000x2200 | 5500x2300 | 6000x2300 |
| 9 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 |
| 10 | ground clearance(mm) | 50 | ||||||
| 11 | (mm)wheels base | 1500 | 1700 | 1800 | ||||
| 12 | (mm)axles distance | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| 13 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| 14 | turning type | turning while driving with no stop | ||||||
| 15 | control method for turning | control button | ||||||
| 16 | turning structure | mechanical | ||||||
| 17 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| 18 | (mm)wheel diameter | Ф300(4) | Ф350(4) | Ф400(4) | Ф400(6) | Ф500(6) | ||
| 19 | wheel material | ZG55+hydropur ture | ||||||
| 20 | running speed(m/min) | 0-15 | 0-12 | |||||
| 21 | brake principle | electric magnetic brake | ||||||
| 22 | ground balance | mechanical automatic adjustment | ||||||
| 23 | operation method | with wire or no wire | ||||||
| 24 | battery model | D-250 24 | D-330 24 | D-400 24 | D-440 24 | D-250 36 | D-330 36 | D-440 36 |
| 25 | battery maintainance | free of maintainance | ||||||
| 26 | charger's installation | installed on cart | split-type | |||||
| 27 | charger function | automatic charging | ||||||
| 28 | cart color | +yellow and warning sign | ||||||
| 29 | radar control | 3-0.3m,automatic stop for obstacles | ||||||
| 30 | warning equipment | sound and light | ||||||
| 31 | other functions | ,,turning light,night light and power display |
||||||
