Product Details:
Payment & Shipping Terms:
|
| Product Name: | 50 Ton Motorized Carbon Steerable Industrial Transfer Trolley For Heavy Duty Industrial Material Handling | Material: | Carbon Steel |
|---|---|---|---|
| Load Capacity: | 1-300t | Application: | Industrial Field |
| Control System: | PLC | Certificates: | CE ISO SGS |
| Power Supply: | Battery,busbar,cable,rail | Warranty: | 12months |
| High Light: | electric transfer cart,load transfer trolley |
||

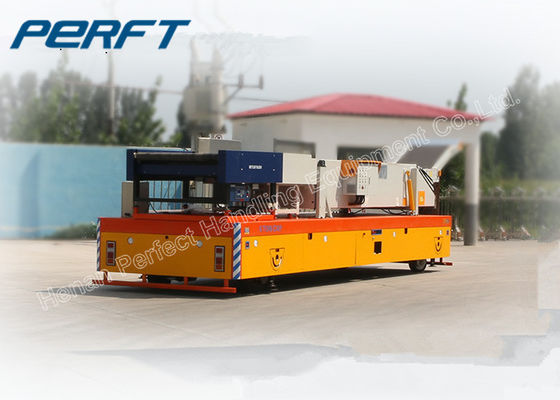

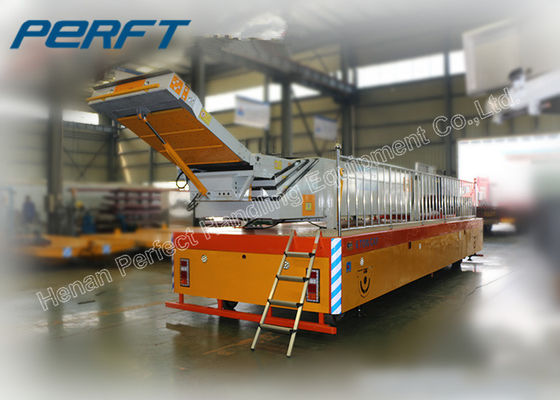

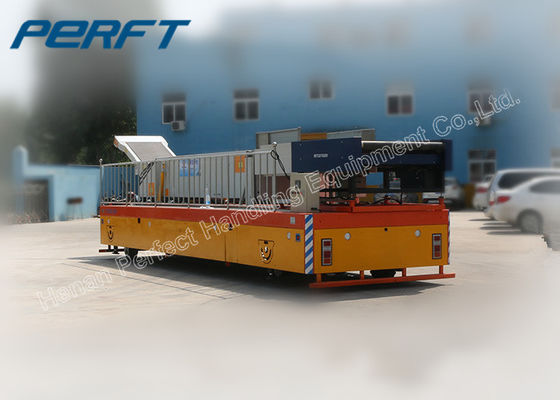

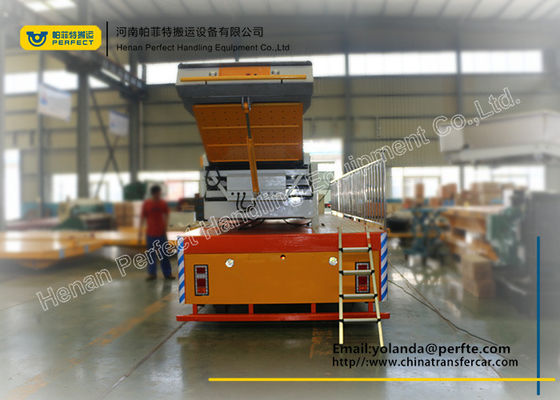

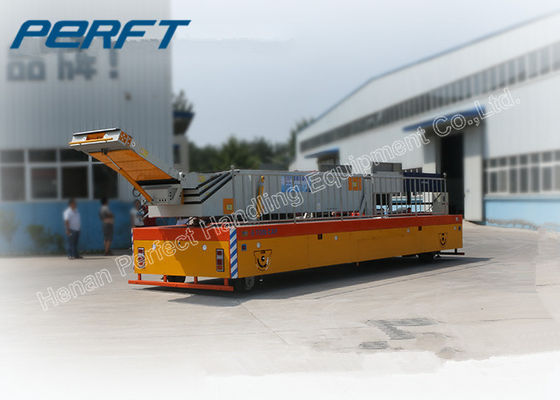

50 ton Motorized Carbon Steerable Industrial Transfer Trolley for Heavy Duty Industrial Material Handling
The BWP series 50 ton Motorized Carbon Steerable Industrial Transfer Trolley for Heavy Duty Industrial Material Handling can Turn to 360 Degree.The 50 ton Motorized Carbon Steerable Industrial Transfer Trolley for Heavy Duty Industrial Material Handling is required on the cemment floor.The supply power can be customized,such asrail powered,battery powered,cable reel motorized,etc.
Advantages
1.The Industrial Transfer Trolley is Anti-high temperature,Anti-high explosion
2.The Industrial Transfer Trolley is powered by battery
3.With lifting holes,The Industrial Transfer Trolley is convenient to shipment
4.The Industrial Transfer Trolley has a feature of stable start, big starting power, long lifetime
5.The Industrial Transfer Trolley can spin around 360 degrees
6.Running distance of this Industrial Transfer Trolley is unlimited
7.Safe and convenient operation is available for the tranfer car
8.High using frequency for the Industrial Transfer Trolley
Main components
Technical parameters
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application
The Industrial Transfer Trolley is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
