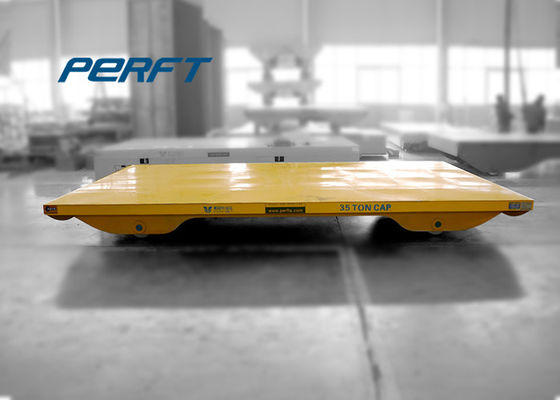

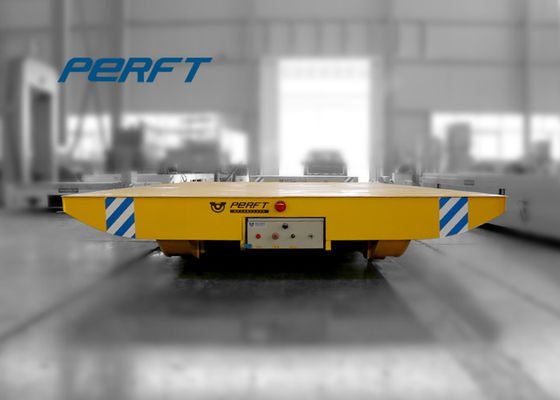

3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer
3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

Large Image :  3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

Product Details:
Place of Origin: Henan china
Brand Name: Electric Trackless Transfer Flat Car
Certification: CE ISO SGS
Model Number: Electric Trackless Transfer Flat Car
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD3100-5000/SET
Packaging Details: Trap and wooden case
Delivery Time: 20 work days after received balance payment
Payment Terms: L/C, T/T
Supply Ability: 30sets/week
Detailed Product Description
Product Name: 3.5 Ton Cable Drum Motorized Industrial Material Electric Transfer Trailer Material: Carbon Steel
Running Speed(m/min): 20 Motor Power(Kw): 3.5-15
Table Size: Customized Ground Clearence(mm): 50-75
Wheel Base(mm): 1200-7000 Rail Inner Gauge(mm): 1200-2000
High Light:

electric transfer cart

,

load transfer trolley

3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer



The 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer is the cable drums powered ,the automated transfer track cargets power AC 380v through the device of cable reel , and the motor is controlled by the power through AC control system that make the automated transfer track car to start, stop, go forward , backward , adjust the speed and so on.We adopt the magnetic coupling cable reel, The 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer can make sure that there is no force on the cable and the cable can be wound and released evenly. if The 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer is used in short distance transportation,It is a better choice without limited time. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements.



Advantages and functions of 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

  • Applied in many occasions, such as easy explosion, easy corrasion, high temperature;
  • AC motor,simple structure,not limited for the using time;
  • Powered by cable drum, so there is not strict requirement for the construction of the railway ,and the running distance should accord to the length of the cable;
  • Cost is not high, easy to operate and maintenance;
  • Capacity and table size can be customize;
  • The hydraulic lifting device can be equipped as per your requirement.
  • As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
  • As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
  • Maximum running distance is less than 200m because of the limited cable. And you should add the line device to make the cable smooth when the distance is over 30m.
  • The cable reel is the magnetic coupling to ensure the cable can operate smoothly without pressure.

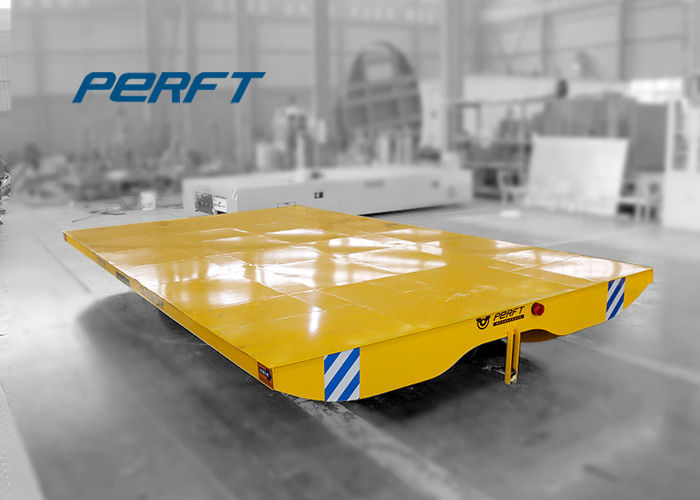

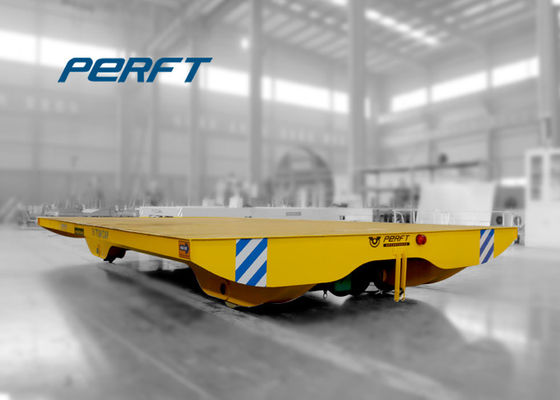

Detailed Image of 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer



Technical parameter table of 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

Rated Load(t) 2 10 20 30 40 50 63 80 100 150
Wheel Base(mm) 1200 2600 2800 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Wheel Diameter(mm) Ø270 Ø300 Ø350 Ø400 Ø500 Ø500 Ø600 Ø600 Ø600 Ø600
Ground Clearence(mm) 50 50 50 50 50 50 75 75 75 75



Application of 3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer

3.5 ton cable drum motorized Industrial Material Electric Transfer Trailer
