Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Automated Guided Vehicle Trackless Transfer Cart |
|---|---|---|---|
| Capacity: | 1-300 Ton | Color: | Customized |
| Control Method: | Remote Control/Pendant | After-sales Service Provided: | Engineers Available To Service Machinery |
| High Light: | load transfer trolley,material transfer trolley |
||

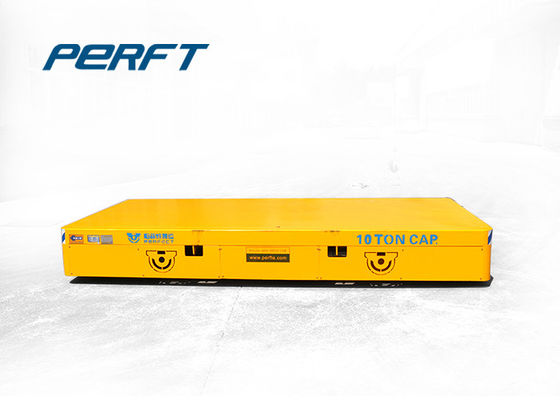

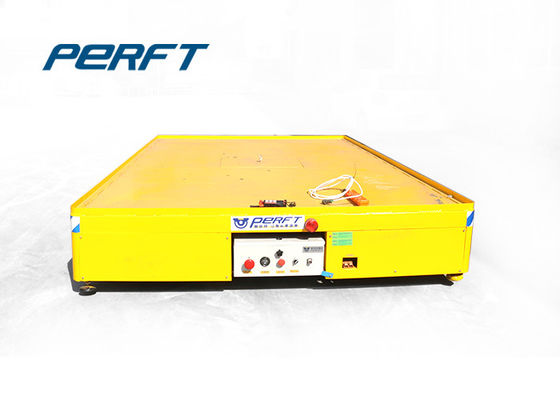

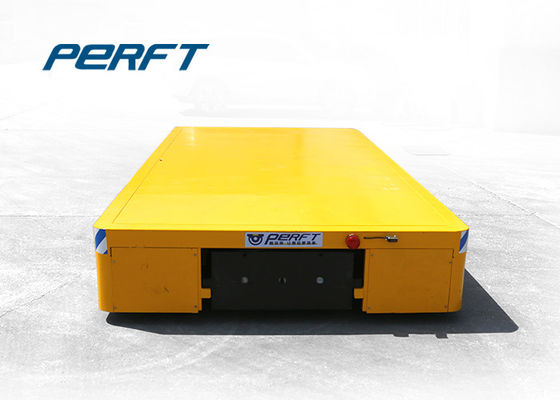

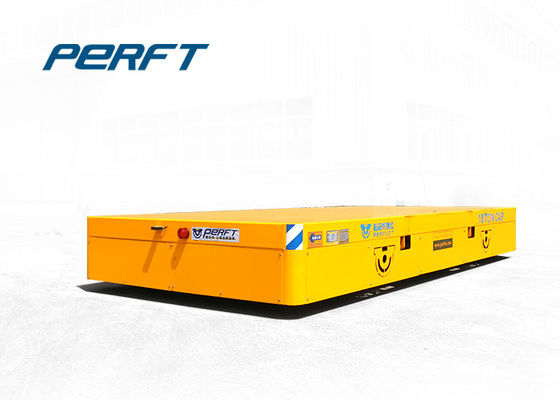

Our Automated guided vehicle Trackless Transfer Cart have big load capacity because we have used steel structure bearing frame. we also fit lifting holes and Polyurethane solid rubber-coated Wheels. It's battery powered, trackless. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of Automated guided vehicle Trackless Transfer Cart for you according to the working environment and floor condition.
The Automated guided vehicle Trackless Transfer Cart is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This Automated guided vehicle Trackless Transfer Cart has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay.
Technical Parameter of Motorized trackless transfer cart
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
