Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Duty Plant Trailer Transfer Carriage On Rails In Factory Workshop | Type: | Industrial Ladle Transfer Cart |
|---|---|---|---|
| Supply Mode: | Battery | Orignal: | China(mainland) |
| Material: | Q235 | ||
| High Light: | heavy load cart,heavy duty industrial carts |
||

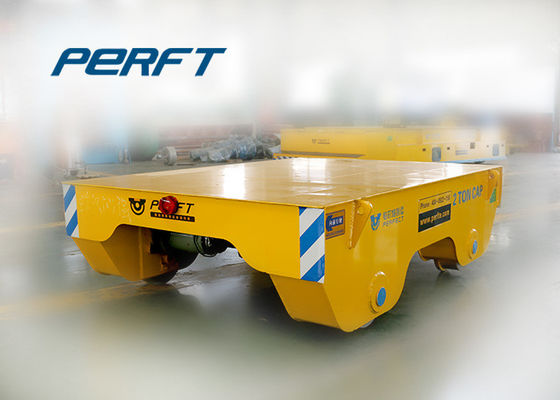

Heavy Duty Plant Trailer Transfer Carriage on Rails in Factory Workshop
5T 10T 20T industry material transfer motorized electric rail car, it is a motorized electric rail car powered by towing cable which is laid on the ground. The cable line is placed between the two rails or oneside. The operation system is low voltage 36V power. It has widely applied in the industry transportation field all over the world. Our motorized electric rail car is available in a number of configurations specifically designed to suit the needs of our customers.
Advantages
Parameters
| Model | BXC-2T | BXC-5T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-100T | BXC-150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 |
QU100
|
|
Application
