Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity | Type: | Ladle Transfer Car |
|---|---|---|---|
| Material: | Q235 | Wheel Material: | ZG235 |
| Highlight: | heat resistant ladle transfer cart,heat resistant ladle transfer trolley,300t ladle transfer cart |
||

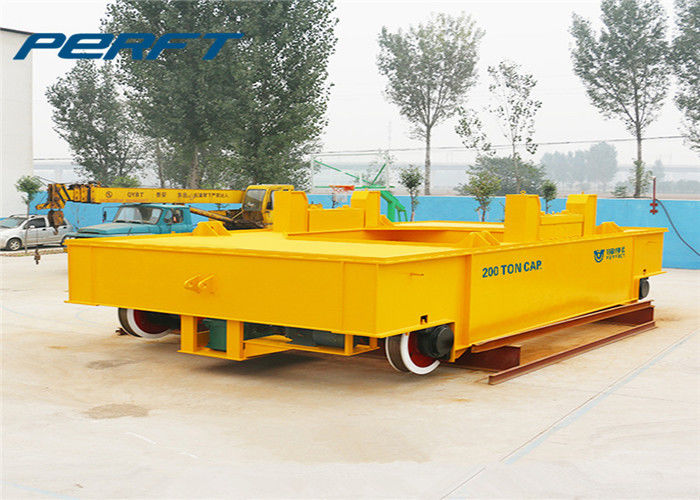

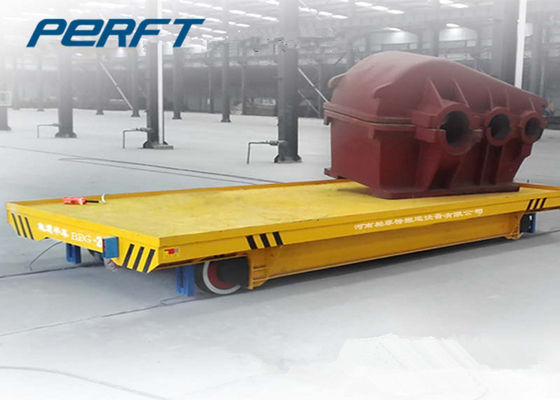

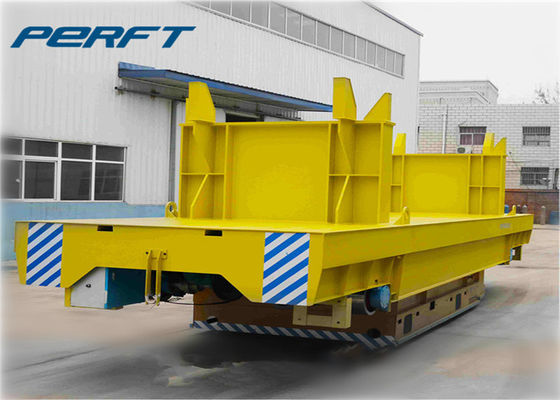

Industrial Ladle Transfer Cart Battery Powered Customized 1-300T Capacity
Customized anti-heat steel ladle transfer car with remote control, it makes the AC electricity power is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the transfer car' wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the transfer car, And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the transfer car start, stop, go forward and backward and adjust the speed and so on.
Advantages
Parameters
| Model | BXC-2T | BXC-5T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-100T | BXC-150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 |
QU100
|
|
Application
