Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Powered Trabsfer Cart | Powered Source: | Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | Customized | Color: | Yellow/Customized |
| Working Time: | 6~7 Hours | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| High Light: | 30T Rail Handling Wagon Equipment,Q235B Rail Handling Wagon Equipment,Warning Light Ladle Transfer Car |
||

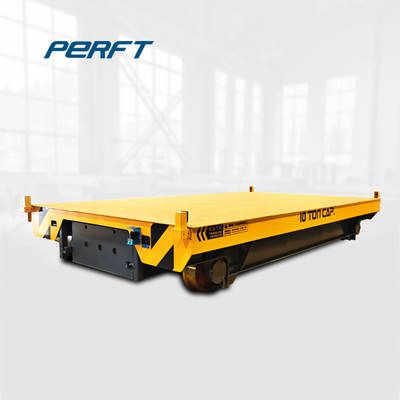

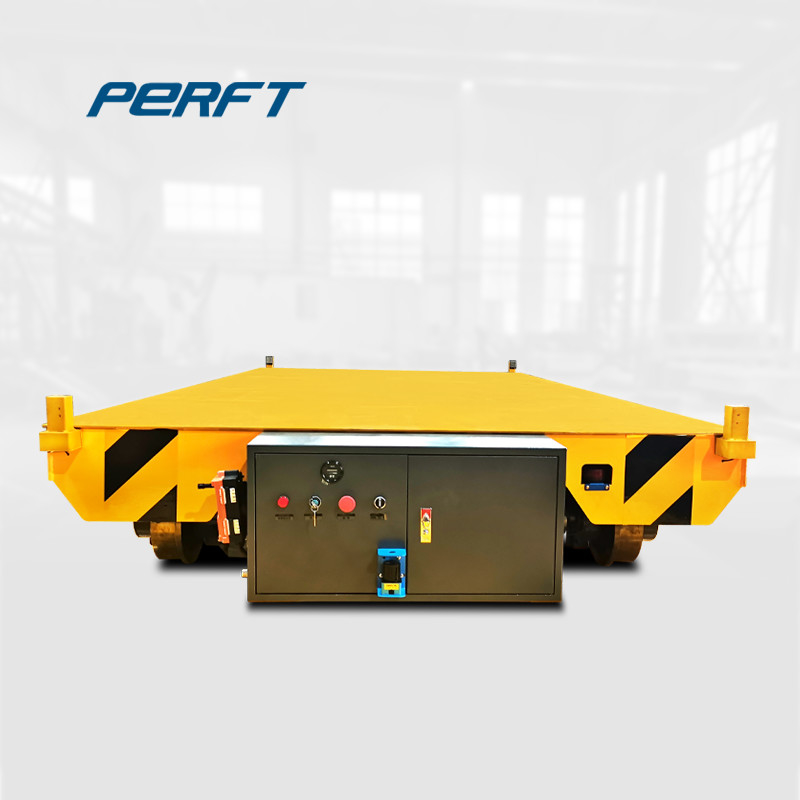

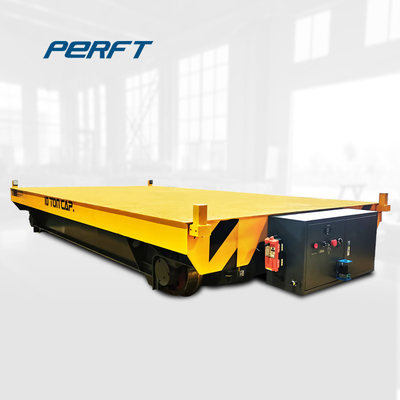

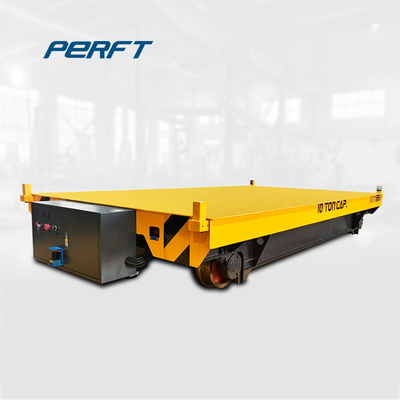

30T Metal Factory Using Rail Handling Wagon Equipment With Warning Light
Applications
Assembly Line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the Steel Material Transporter is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc.
Warehouse transport: The Steel Material Transporter is applied to transfer heavy material from one warehouse to another or from warehouse to factory (eg.transfer paper coils in paper mill, transfer large package ), it can travel in all kinds of rails. With automatically operate, it can greatly improve the working efficiency.
Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.).
The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
Workshop: The cart is mainly applied in machining workshop, manufacturing workshop, mold workshop to transfer machining parts, finished products, castings etc.
Painting room: The cart should be producing fire during working. In order to avoid explosion, the motor, reducer, electric appliance, pendant and alarm should protected and explosion-proof.
Main Features
Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Sales Service
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely.
Productions
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.
