Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | 20 Ton Electric Railway Transfer Cars |
|---|---|---|---|
| Application: | Warehouse ,factory | Color: | Customized |
| Capacity: | 1-300ton | Running Speed: | 0-20m/min |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery |
| Certification: | CE ISO SGS | ||
| High Light: | motorized Industrial Transfer Trolley,20m/min railway Industrial Transfer Trolley,customization Industrial Transfer Trolley |
||

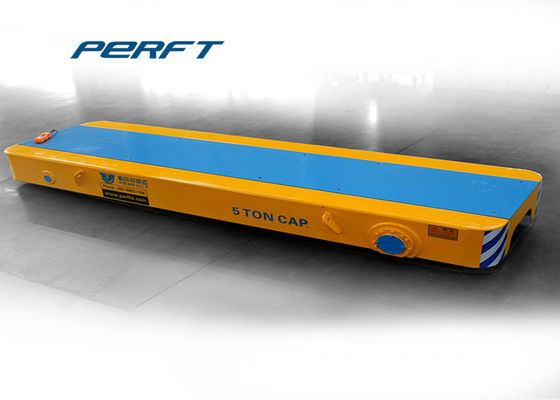

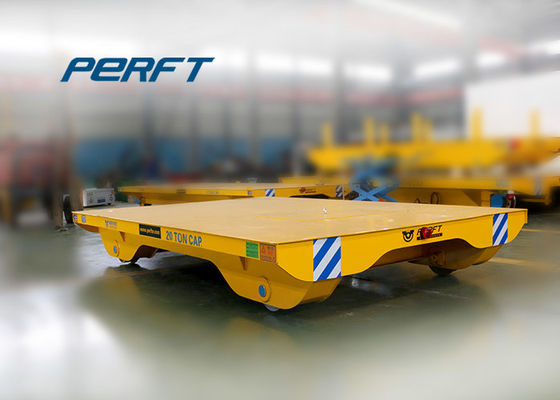

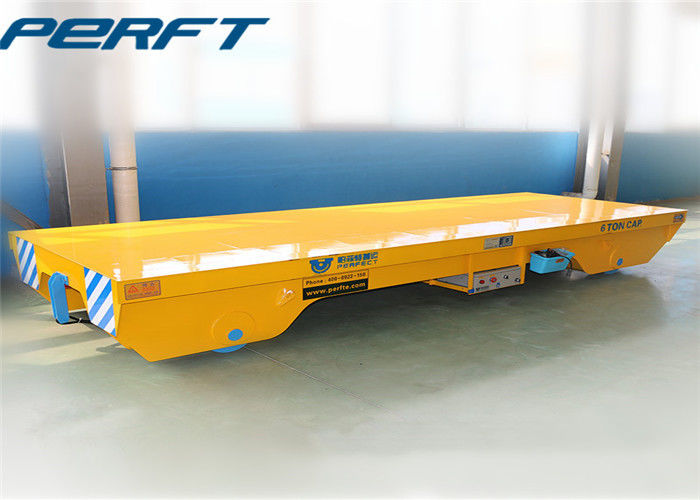

Customization High quality Electric Railway Motorized transfer trolley
Descraptions
Customization High quality Electric Railway Motorized transfer trolley is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compared with others, It has no limited distance; Compared with others, it is simple operation and structure, But its main source powered is battery, the maintenance free battery is chosen to export due to its convenience. About this, it is popular in many foreign countries like South Africa ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
