Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Tractor / Winch / Powered Transfer Car / Manpower | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Color: | Yellow / Customized | Running Distance: | No Limited |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | battery powered motorized transfer cart,warehouse motorized transfer cart,q235b frame battery powered transfer cart |
||

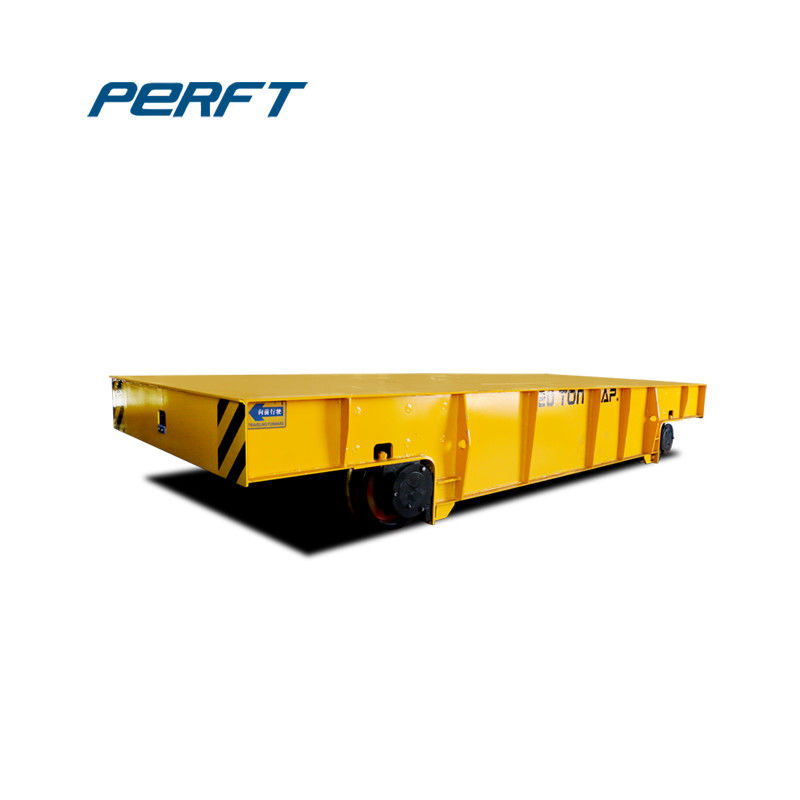

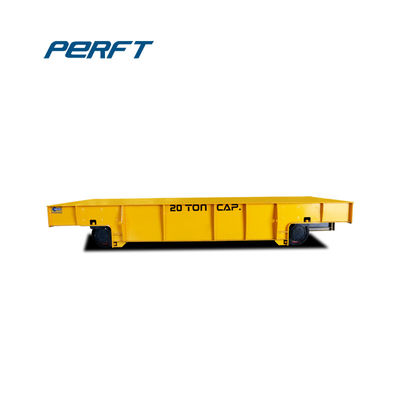

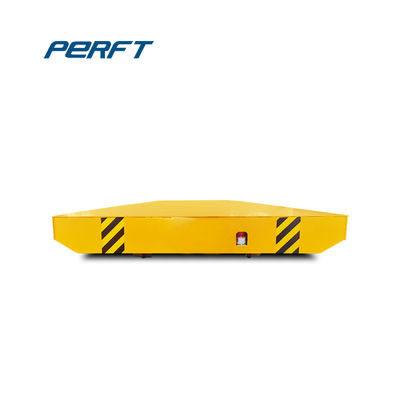

We provide extreme capacities industrial trolley in compact designs for safe delivery of heavy loads.
These heavy duty custom-built industrial trolleys can be rail mounted or free ranging units with two-wheel (2WS) or four-wheel (4WS) steering with either ride-on stations or walk-along controlled via tethered or wireless controls.
Interms of the rail mounted industrial trolleys, which can be divided into powered type and motorless rail trolley. The powerless industrial trolley can be pushed or pulled by operators or towed by another powered transfer cart or a fork lift of adequate capacity. They easily maneuver loads without a fork lift. These solid manual transfer trolleys are versatile and can be customized to suit your application. Designed with the box girder structure, it is widely used to transport parts and components in ship building, electrical appliance, or manufacturing industries.
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T | |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 | |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 | |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 | |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 | |
| On cement floor | Tire Specification | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| On rail | Rail Inner Gauge(mm) | 1435mm | ||||||
| Wheel material | LD steel wheel, Angel box wheel | |||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 | |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 | |
Compliance with recognized standards
Safety Requirements for custom-built industrial trolley
Structural Steel Standard
Welding Standards
General workplace safety
1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
