Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Henan, China (Mainland) | Product Name: | 20 Ton Electric Railway Transfer Cars |
---|---|---|---|
Application: | Warehouse ,factory | Color: | Customized |
Capacity: | 1-300ton | Running Speed: | 0-20m/min |
Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery |
Certification: | CE ISO SGS | ||
High Light: | ferry industrial transfer trolley,transporting cargo industrial transfer trolley,customization heavy duty transfer car |

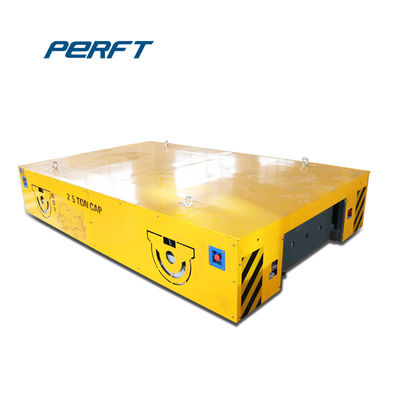

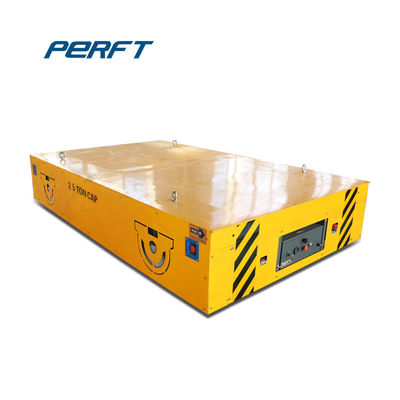

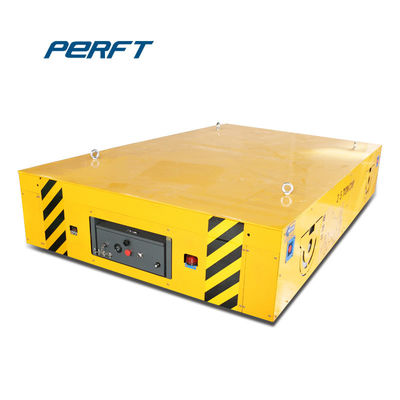

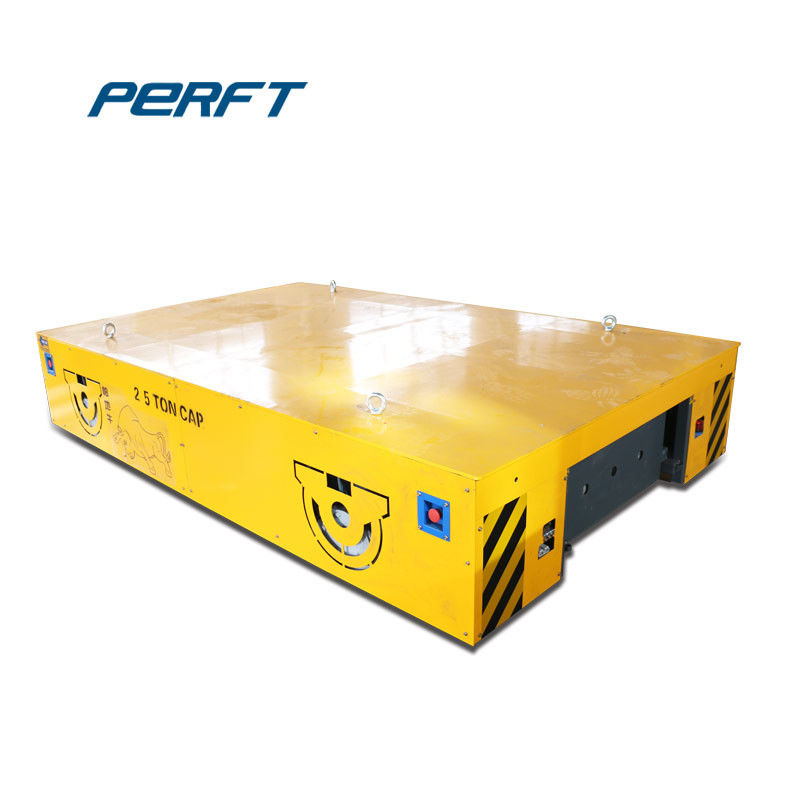

Customized 30 ton Heavy Load Electric Ferry Transfer Cart Transporting Cargo
Introduction of Ferry Transfer Cart
The Crossing Rails Ferry Transport Cart is made up of two parts. The upper car is used for transporting cargo. The upper can can be equipped with V shape support, lifting platform. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The Crossing Rails Ferry Transport Cart can realize cargo transfer among crossing rails. It's more convenient and could be used separately compared with rotating platform.
Parameter
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 1 | 2.2 | 5. | 10 | 15 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
