Place Of Origin: | Henan, China (Mainland) | Product Name: | Automatic Agv Transfer Cart |
---|---|---|---|
Application: | Industrial Filed | Color: | As Your Needs |
Table Size: | Customized | Running Speed: | 0-20m/min |
After-sales Service Provided: | Engineers Available To Service Machinery | Certification: | CE ISO SGS |
High Light: | alarm light material transfer trolley,automatic steering material transfer trolley,customization material transfer trolley |

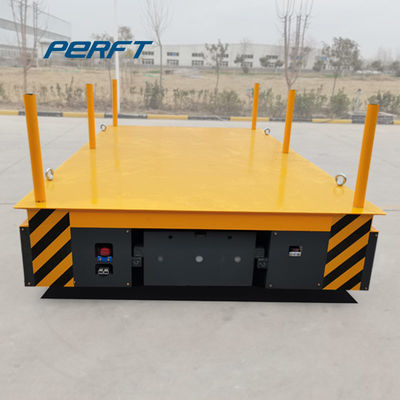

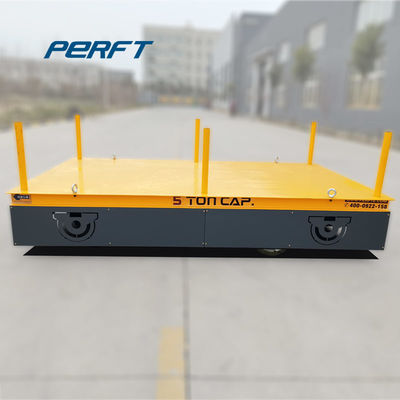

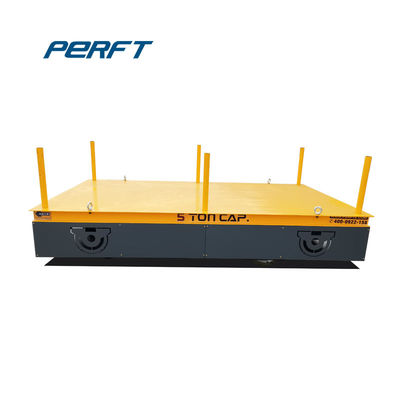

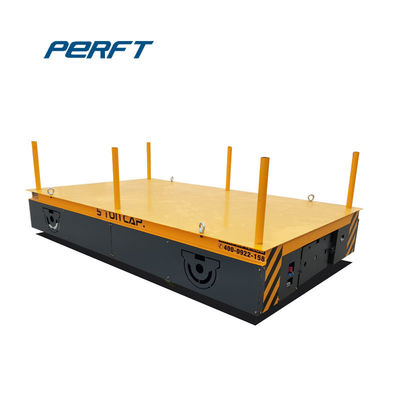

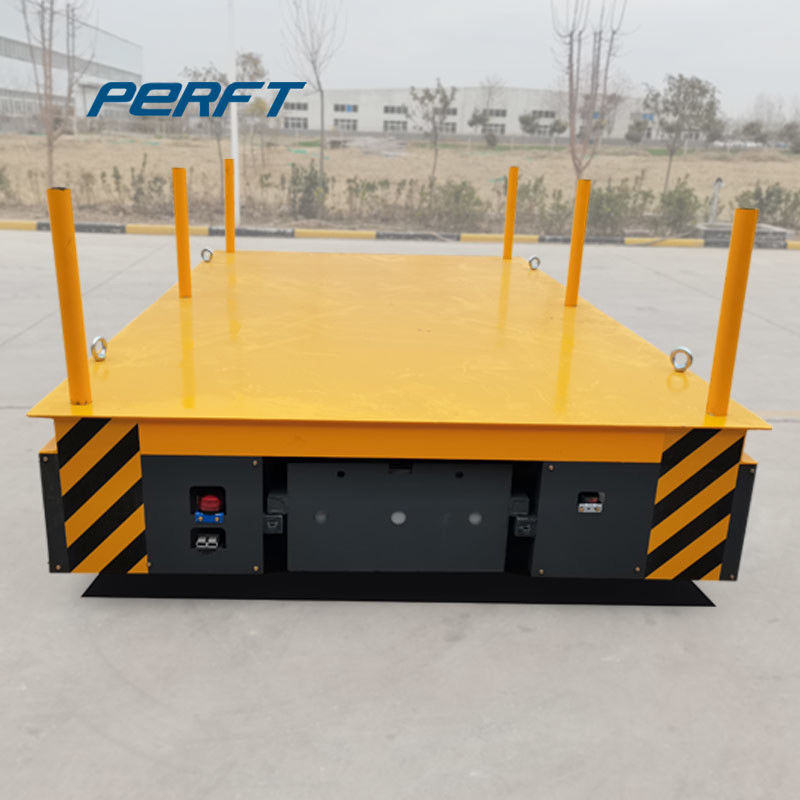

customized automatic Steering Device Steel Trolley Car Transporter with Alarm Light
Product Description of Trolley Car Transporter
Trolley Car Transporter is movable platform used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, they are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.
The Trolley Car Transporter is without limitations to track length and distance due to it is free from the cable powered mould. And our standard heavy-duty design is controlled by a hand held joy stick or remote control with all wheel steering and small turning radius.
Powered by storage battery
Factory history of 15 years
Turning at a minimum radius
Safety PU wheels for protection
Running an unlimited way
Operate easily
Maintenance convenient
Model
|
BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
Width(W) | 1500 | 2000= | 2200 | 2200 | 2500 | 2500 | 3000 | |
Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
