Guided Vehicle System Transportation Carriage Coil Transfer Cart 30T

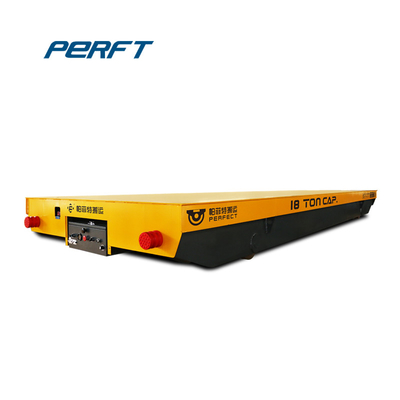

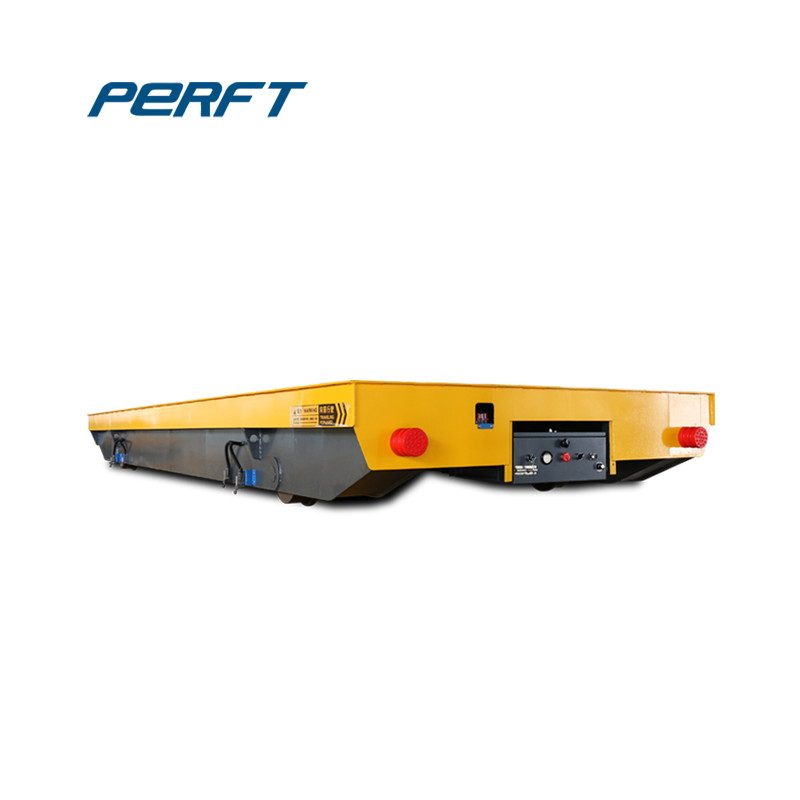

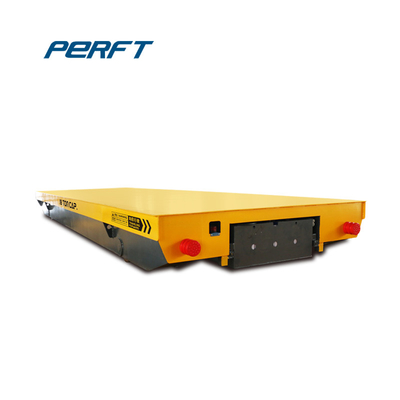

Large Image : Guided Vehicle System Transportation Carriage Coil Transfer Cart 30T

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	battery operated platform load cart for coil car transporter
Certification:	CE ISO SGS
Model Number:	battery operated platform load cart for coil car transporter

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 3000~7000 set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 set month

Contact Now

Detailed Product Description

Place Of Origin:	Henan, China (Mainland)	Product Name:	Battery Operated Platform Load Cart For Coil Car Transporter
Application:	Industrial Filed	Color:	Customized
Capacity:	Customized	Running Speed:	0-20m/min
After-sales Service Provided:	Engineers Available To Service Machinery
High Light:	Coil Transfer Cart 30T , Guided Vehicle System Coil Transfer Cart , Coil Transfer Car 20m/min

30T Manufacturer Guided Vehicle System Transportation Carriage cart

Introduction

Trailing cable powered series China rail transfer car permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. This type China rail transfer car can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

technical parameter

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Product Application

We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want!

Packing and Shipment
The body of the China rail transfer car is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
