Product Details:
Payment & Shipping Terms:
|
| Rated Load (T): | 1-150t | Table Size: | Customize |
|---|---|---|---|
| Running Speed: | 0-20 | Ground Requirement: | Cement Floor |
| Control Mode: | Push Button Control, Wireless Remold | Motor Power (Kw): | 1.5 |
| Battery Capacity(Ah): | 180-600 | Charger Function: | Automatic Charging |
| Ground Clearance: | 50 | ||
| High Light: | Powered Transfer Battery Trolley,10T Motorized Steerable Transfer Battery Trolley |
||
Description

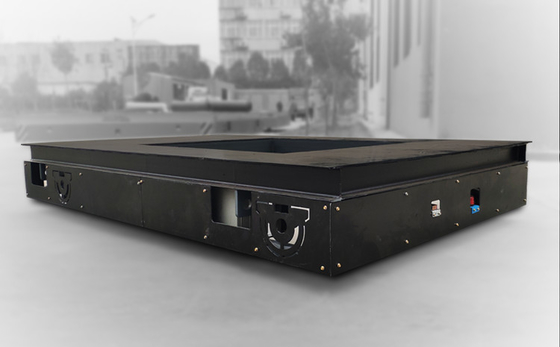

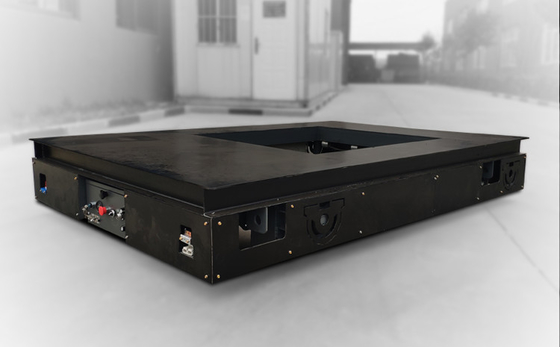

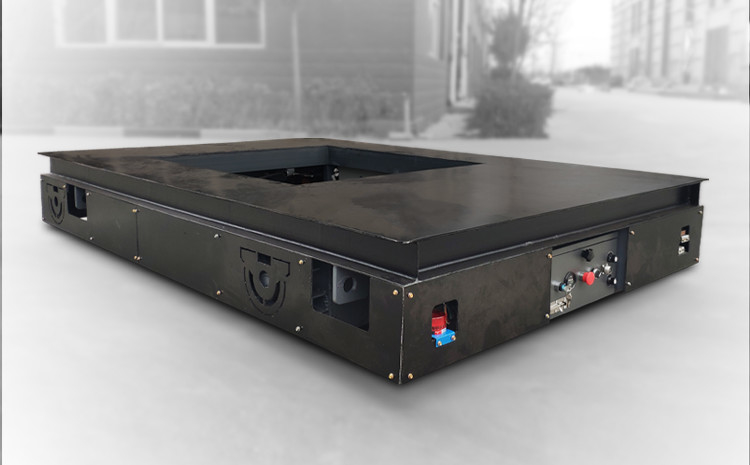

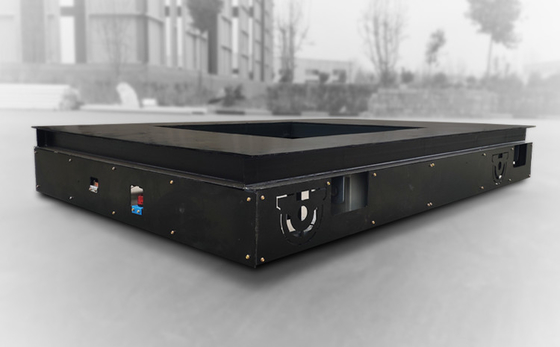

PERFECT's battery transfer trolleys are movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. The transfer carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the vehicles are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These cargo loading trolleys are designed to operate on floor or rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Uses of Electric Transfer Wagon:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
| Model | BWP-2t | BWP-20t | BWP-50t | BWP-100t | BWP-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Successful case
A company in India ordered a 10t truck in our company in October 2018. They are mainly used to transport steel coils. They have driven, but they are unsafe and unstable. Therefore, they need a ground truck to transport from the warehouse. To the processing workshop, the crane hoisted the steel coil and placed it on the truck smoothly. The mold car passed the two workshops to transport the steel coil smoothly to the processing workshop.
