Product Details:
Payment & Shipping Terms:
|
| Application: | Steel Industry, Factory, Warehouse, Port | Load Capacity: | 20T (Customized) |
|---|---|---|---|
| Tow Mode: | Draw Bar | Guard Rails: | Optional |
| Cart Frame: | Q235B | Control Mode: | Towing |
| Running Distance: | Ulimited | Working Time: | Ulimited |
| Wheel Type: | Polyurethane Solid Wheels/Solid Tire Wheels | Color: | Customized |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Power Mode: | Unpowered |
| High Light: | heavy load cart,heavy duty industrial carts |
||

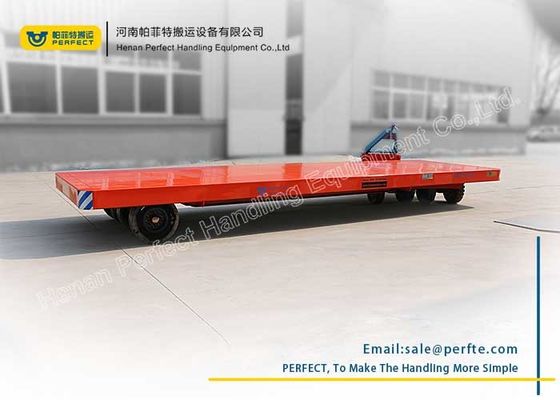

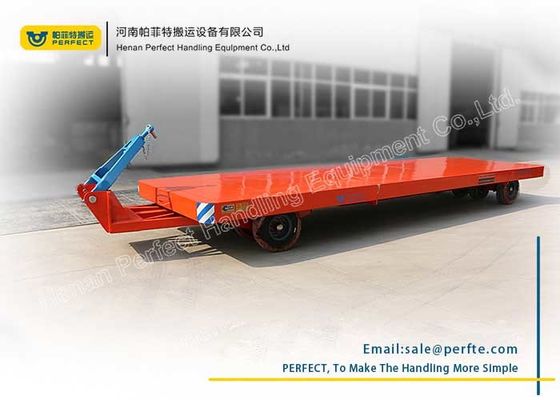

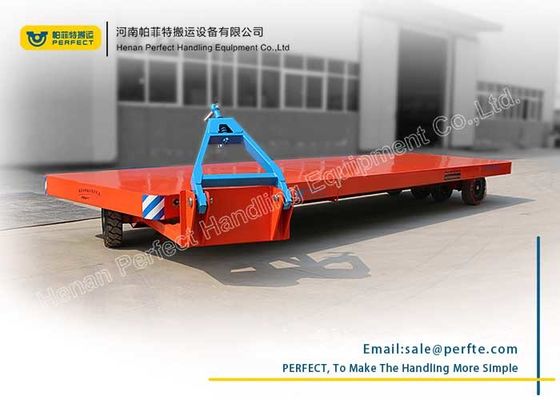

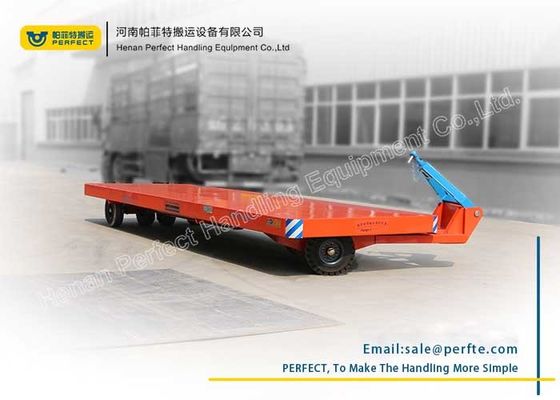

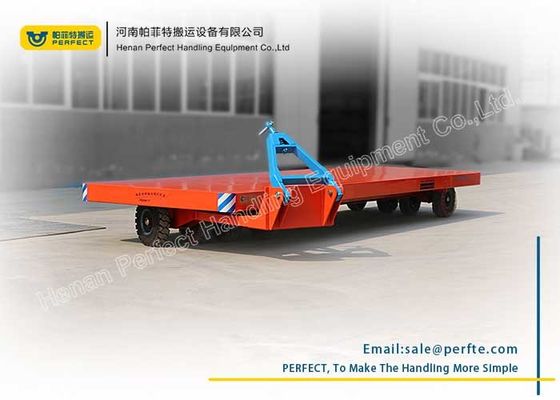

The tow-bar mounted cargo transfer industrial trailer manufactured by Henan Perfect Handing Equipment Co., Ltd., has the advantage of long service life and large load capacity range 1 ton to 100 tons. The frame material of this industrial trailer is steel beam, the steering mechanism is connected by a steel bar, so that the turning radius is very short, which makes it very flexible working on small space. The table size, load capacity is customized according to customer's demands. We apply cast steel and polyurethane for the wheels, so the wheel is very wear resistant. The tow-bar mounted cargo transfer industrial flat trailer will have two layers of paint which is used for antitrust, one payer of primer and one layer of finish.
Application---Cargo Transfer Industrial Flat Trailer
The industrial trailer could be customized as your requirement. The industrial trailer can be used in many occasions, like industry field (mining industry; copper industry; pipe industry; cement plant; mold factory...); bay to bay transport; ... The load capacity can up to 300Ton,We will make it to meet your demands.
We also produce many other kinds transfer machine,such as heavy machine transfer, which is also our experienced product, and the frame, the box beam structure of our trailer is adopted to make the lifetime longer... we will meet all of your requirement.
Specifications---Cargo Transfer Industrial Flat Trailer
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
| Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Customized---Cargo Transfer Industrial Flat Trailer
All our products could be customized as clients' special needs, some customized industrial flat trailer are below:
Related Products
Based on modern plant and advanced production equipment, we can produce all kinds of industrial transfer trailer from 1-1300 tons, our mainly products including BDG series transfer trailer, BJT cable drum series transfer trailer, BHX safety sliding line series transfer trailer, BXC battery series transfer trailer, BTL towed cable series transfer trailer, BP non-power series transfer trailer, BQY train towed series transfer trailer, BWP trackless series transfer trailer and special transfer trailer, such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Shipping and Packing---Cargo Transfer Industrial Flat Trailer
Contact Person: Jack
Tel: +8615736919601
