Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Drum Power Electric Flat Cart Abrasive Blasting Painting Rail Transfer Cart As Print Industry | Type: | Cable Reel Transfer Cart |
|---|---|---|---|
| Capacity: | 150t | Wheel Base(mm): | 1200-7000 |
| Wheel Quantity: | 4 | Motor Power(Kw): | 0.8-15 |
| Table Size: | Customized | Impacted Rated Load(t): | 7.5-75 |
| High Light: | factory SGS rail transfer cart,150t battery powered transfer cart,150t rail transfer cart |
||
Battery powered Factory use Heavy load material transfer Rail Die Transfer Cart

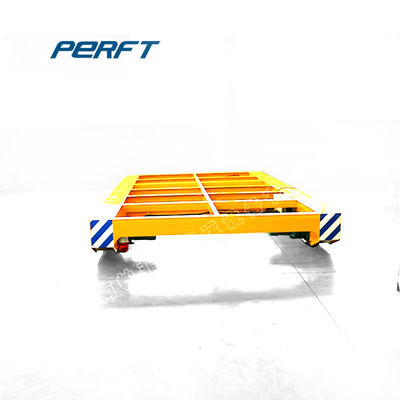

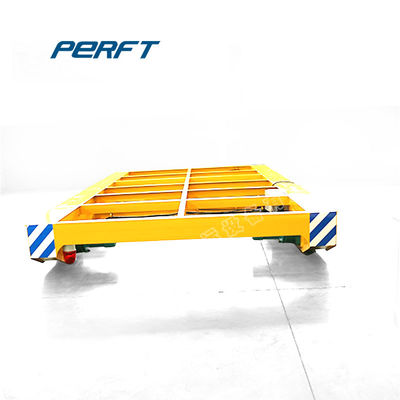

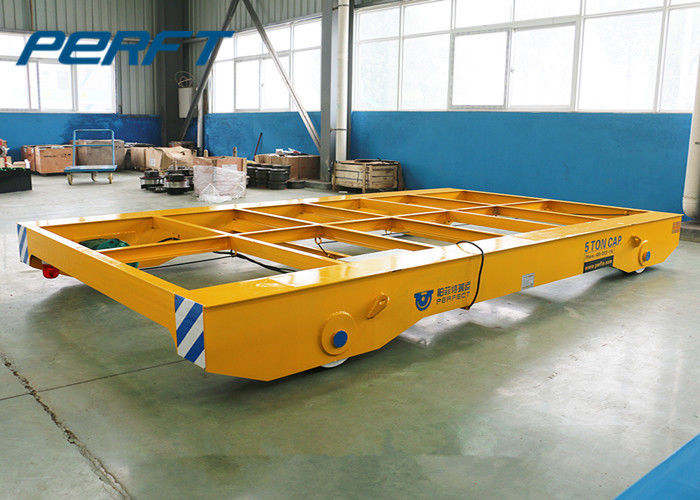

The BTL Series cable drum power electric flat cart Abrasive Blasting Rail Transfer Cart as Print Industry is powered by dragging cable. The Car has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc.The Series Rail Bogie can be applied in the occasion such as high temperature, anti-explosive environment. Simple structure and low cost make it very popular for crossing bay transportation. The Series Transfer Car is suitable for running distance less than 20m, high using frequency, low car-height demand. And the towline is alternative to prevent the cable from abrasion if necessary.
Details
Technical parameters
| Rated Load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
How it works
Application and Usage of the Battery powered Factory use Heavy load material transfer Rail Die Transfer Cart
The cable drum power electric flat cart Abrasive Blasting painting Rail Transfer Cart as Print Industry is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
OUR TEAM

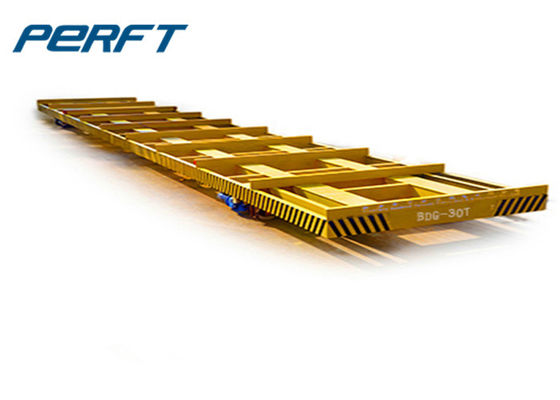

Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
