Heavy Load Conductor Rail Powered Platform Transfer Cart

Name: Heavy Load Conductor Rail Powered Platform Transfer Cart
Brand: PERFECT
SKU: BDG-10T
Price: 1 USD
Availability: InStock
Rating: 4.8 (148 reviews)

Large Image : Heavy Load Conductor Rail Powered Platform Transfer Cart

Product Details:

Place of Origin:	China
Brand Name:	PERFECT
Certification:	CE, SGS, ISO
Model Number:	BDG-10T

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	The Whole Product Packing with Tarp and Wooden Case.
Delivery Time:	45 Days After Receiving The Prepayment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	750 Sets Per Year

Contact Now

Detailed Product Description

Usage:	Die Handling, Material Transfer, Warehouse Transportation	Material:	Q235
Load Capacity:	10T	Table Size:	40002200550
Power Source:	Conductor Rail	Model Number:	PERFECT-BDG
Warranty:	12 Months	Special Function:	Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Color:	Yellow/Customzied	Control Mode:	Pendant/Remote/PLC Control
High Light:	conductor rail powered platform transfer cart , conductor rail heavy load transfer cart , 10T heavy load platform transfer cart

Plateform Heavy load Remote controlConductor Rail Powered Die Transfer Cart

Product Descriptions

This BDGZ Series platform track carrier is powered by the rails. This BDGZ Series platform track carrier is used for heavy duty load,high using frequency and meet full automation demand.It has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. BDGZ Series platform track carrier has these features such as safety,flexibility,high using frequency,long using time,long service life,no limitation of running distance.The rails need to be insulated in erection,and the transformer shall be incresed to raise the voltage if the running distance is beyond 80m.

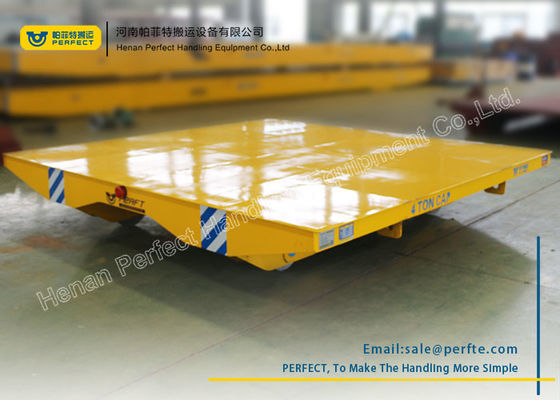

Heavy Load Conductor Rail Powered Platform Transfer Cart 0

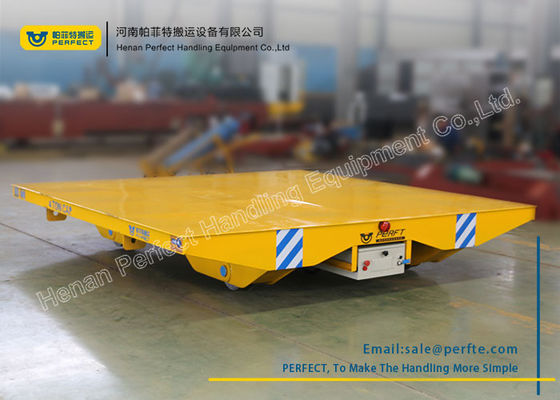

Heavy Load Conductor Rail Powered Platform Transfer Cart 1

Details

1.The platform track carrier is Anti-high temperature, Anti-high explosion;
2.The platform track carrier is powered by low voltage electricity from the railway;
3.With lifting holes, platform track carrier is convenient to shipment;
4.The platform track carrier has a feature of stable start, big starting power, long lifetime;
5.The platform track carrier can run on the C-form track or S-form track;
6.Running distance of platform track carrier is unlimited;
7.Safe and convenient operation is available for platform track carrier ;
8.High using frequency for platform track carrier .

Technical Parameters

Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t	BDGZ-63t
Rated Load(t)		2	16	30	50	63
Table Size(mm)	Length(L)	2000	4000	4500	5500	5600
	Width(W)	1500	2000	2200	2500	2500
	Heigth(H)	450	500	600	650	750
Wheel Base(mm)		1200	2800	3200	4200	4300
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500	600
Wheel Quantity		4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5	6.3
Transformer Power(KVA)		3	6.8	10	10	20
Transformer Quanity		1	1	1	1	1
Running Distance(m)		70	70	70	50	50
Max Wheel Load(KN)		14.4	64.5	110.4	174	221.4
Reference Weight(t)		2.8	5.5	6.8	8	10.8
Recommended Rail Model		P15	P24	P38	QU43	QU50

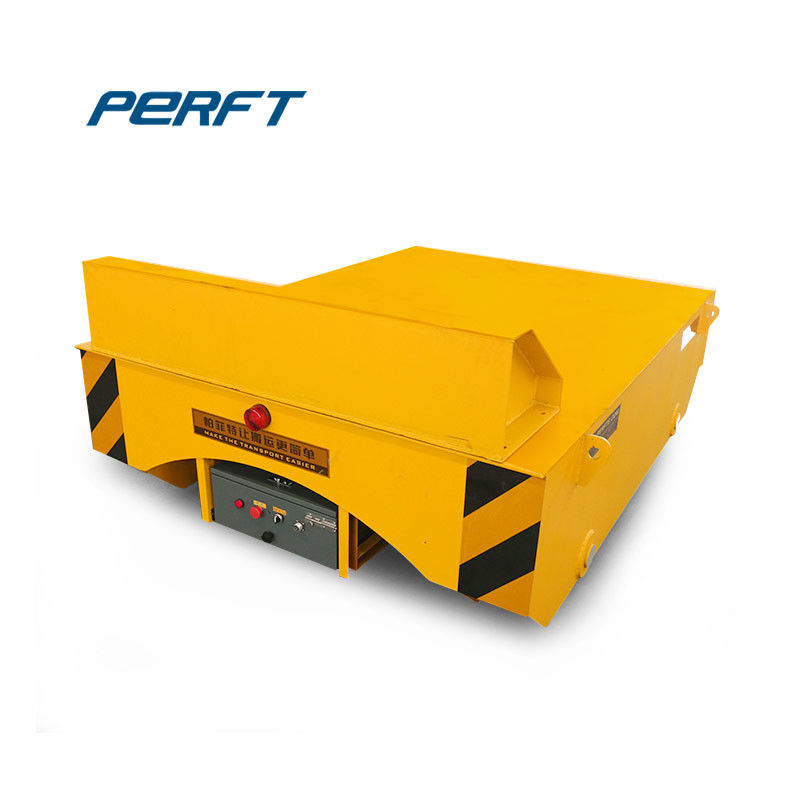

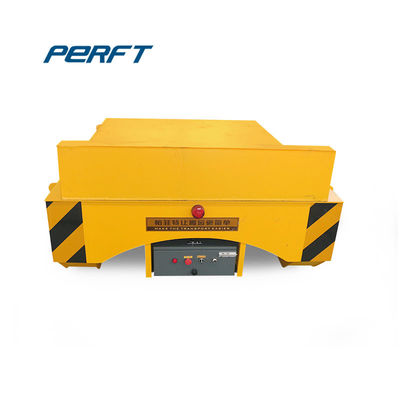

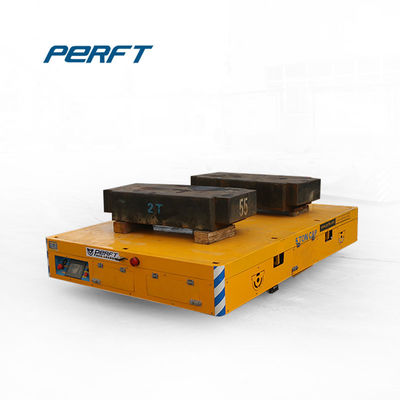

Detailed Image Of platform track carrier

Track Carrier

Where we can use for

Heavy Load Conductor Rail Powered Platform Transfer Cart 3

Certifications

Track Carrier

Our Services

Our commitment: The load bearing safety factor of the platform track carrier is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our platform track carrier can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Company Information

Heavy Load Conductor Rail Powered Platform Transfer Cart 7

Based on modern plant and advanced production equipment, we can produce all kinds of platform track carrier from 1-1300 tons, our main products including BDG series platform track carrier, BJT cable drum series platform track carrier , BHX safety sliding line series platform track carrier , BXC battery series platform track carrier , BTL towed cable series platform track carrier , BP non-power series platform track carrier , BQY train towed series platform track carrier , BWP trackless series platform track carrier and special platform track carrier , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
