Product Details:
Payment & Shipping Terms:
|
| Usage: | Die Handling, Material Transfer, Warehouse Transportation | Material: | Q235 |
|---|---|---|---|
| Load Capacity: | 10T | Table Size: | 4000*2200*550 |
| Power Source: | Conductor Rail | Model Number: | PERFECT-BDG |
| Warranty: | 12 Months | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Color: | Yellow/Customzied | Control Mode: | Pendant/Remote/PLC Control |
| High Light: | Q235 Die Transfer Cart,Heat Resistant Die Transfer Trolley,Flatbed Die Transfer Cart |
||

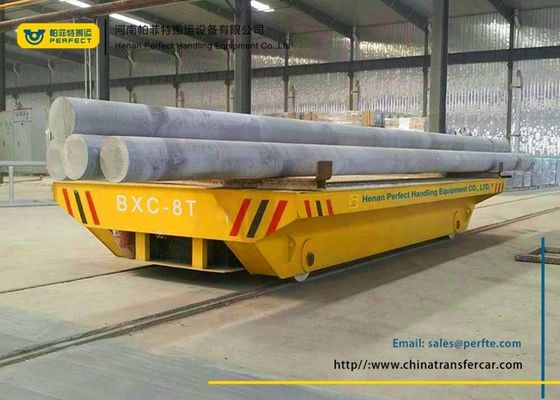

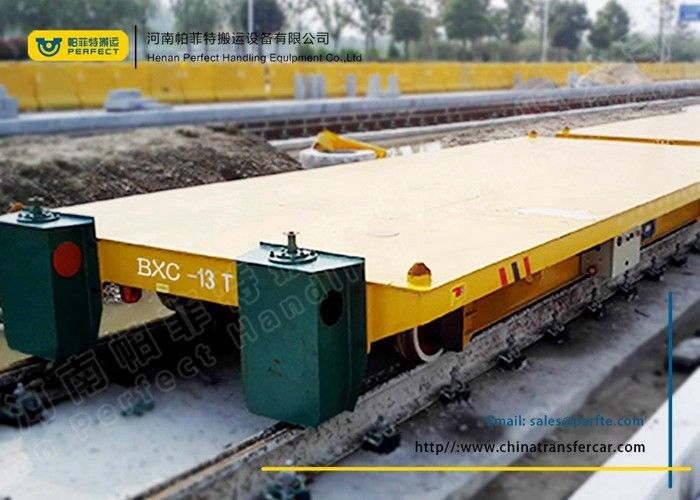

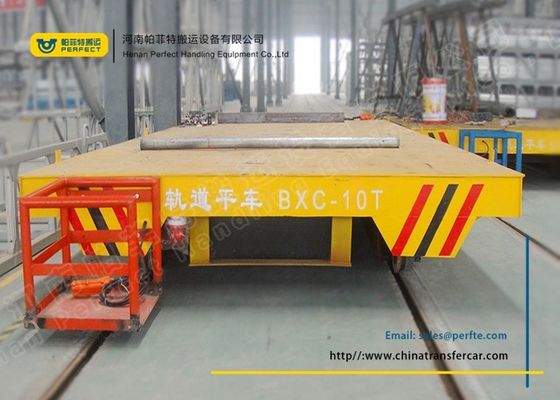

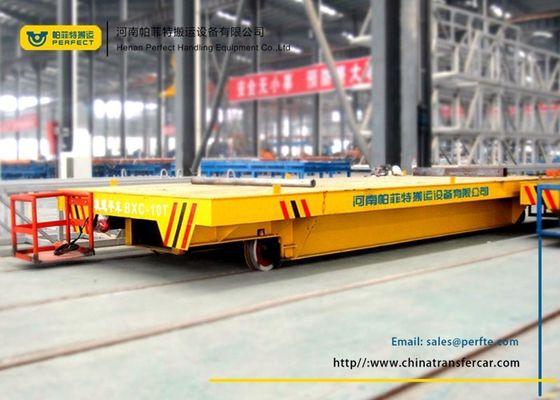

High quality Electric Conductor Rail Powered Die Transfer Cart Platform Track
This Series platform track carrier is powered by the rails. This BDGZ Series platform track carrier is used for heavy duty load,high using frequency and meet full automation demand.It has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc. BDGZ Series platform track carrier has these features such as safety,flexibility,high using frequency,long using time,long service life,no limitation of running distance.The rails need to be insulated in erection,and the transformer shall be incresed to raise the voltage if the running distance is beyond 80m.
| Model | BDGZ-2t | BDGZ-16t | BDGZ-30t | BDGZ-50t | BDGZ-63t | |
| Rated Load(t) | 2 | 16 | 30 | 50 | 63 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 4500 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2500 | |
| Heigth(H) | 450 | 500 | 600 | 650 | 750 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | 4300 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | 270 | 350 | 400 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5 | 6.3 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 10 | 20 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 64.5 | 110.4 | 174 | 221.4 | |
| Reference Weight(t) | 2.8 | 5.5 | 6.8 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P24 | P38 | QU43 | QU50 | |
Based on modern plant and advanced production equipment, we can produce all kinds of platform track carrier from 1-1300 tons, our main products including BDG series platform track carrier, BJT cable drum series platform track carrier , BHX safety sliding line series platform track carrier , BXC battery series platform track carrier , BTL towed cable series platform track carrier , BP non-power series platform track carrier , BQY train towed series platform track carrier , BWP trackless series platform track carrier and special platform track carrier , such as turning, trackless, ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
1. Q: What term of payment do you accept?
A: For the first time we cooperate, we accept 50% T/T as deposit, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as deposit, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is your delivery time?
A: We will deliver the platform track carrier you ordered 45 days after we accept the prepayment.
3. Q: How do platform track carrier been shipped?
A: We export the platform track carrier by sea or train with a full container, LCL or in Bulk.
4. Q: Do you have quality assurance for platform track carrier ?
A: Yes, we have one year of assurance.
