Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Drive Platform Transfer Van | Load Capacity: | 1-300T |
|---|---|---|---|
| Table Size: | Customized | Height: | Customized |
| Control Method: | Remote Control/Pendant | Certificates: | CE/ISO/SGS |
| Application: | Industrial Filed | ||
| High Light: | Flatbed Battery Transfer Carts,Flatbed Battery Transfer Carts,300T Battery Transfer Carts |
||

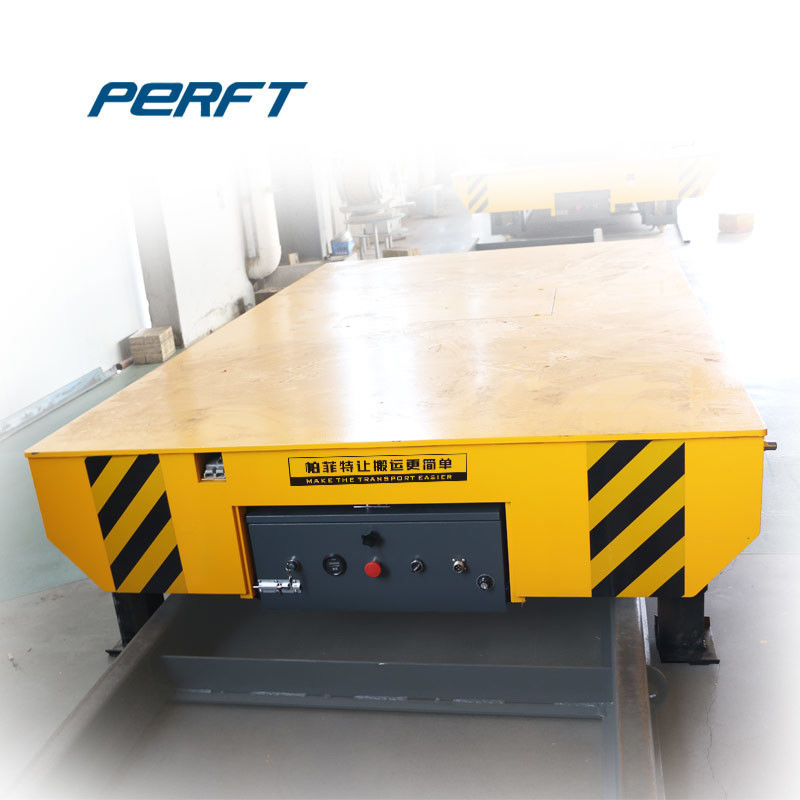

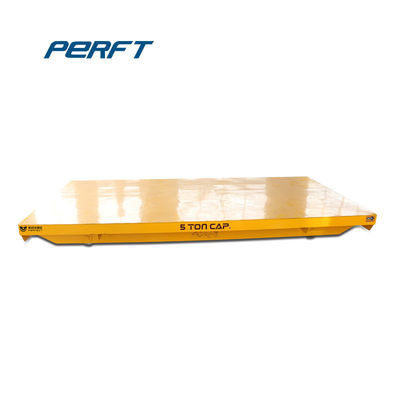

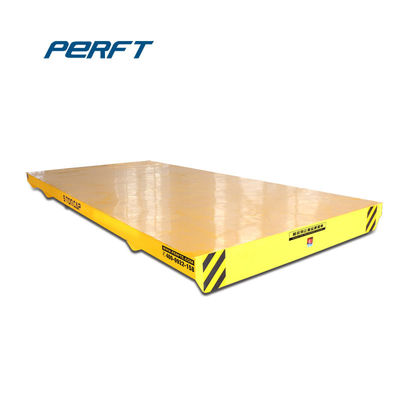

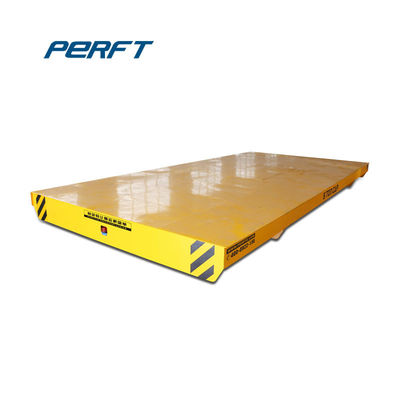

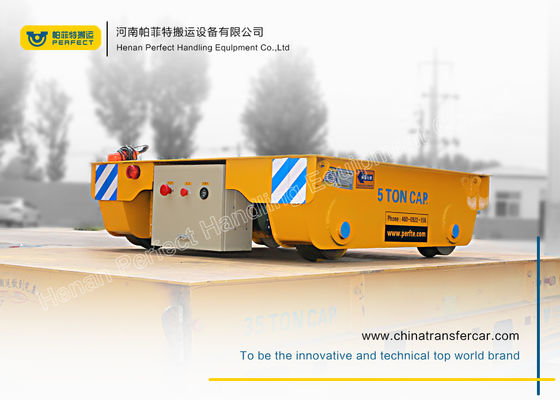

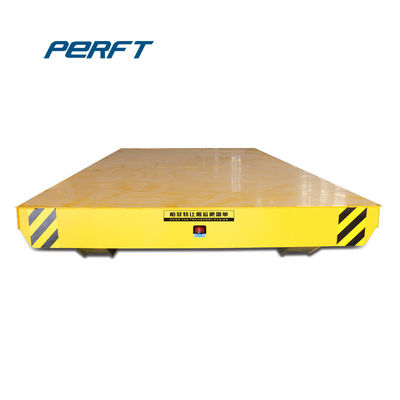

Electric High quality battry van cargo transfer carts with remote controls
Descraptions
The serise carts run on factory floor is powered by battery, electric cable and generator. It can spin around 360 degrees. All the cars are equipped with warning alarm, safety inspection device and Dead-man control. It can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.
The transfer carts run on factory floor can be equipped as per your requirement.As per the transported cargoes,The V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on cart | Split-type | ||||
| Cart color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
Our team group
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
