Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automated Rail Transfer Truck | Parameter: | Customized |
|---|---|---|---|
| Operation Way: | Pendant & Remote Controller | Running Distance: | Unlimited |
| Color: | Yellow/Customized | Power Source: | Battery |
| Load Capacity: | Customized | Warranty: | 12 Months |
| Running Speed: | 0~25m Per Minute | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Application: | Steel Industry, Factory, Warehouse, Port | Feature: | Easy Operated With Long Using Time |
| High Light: | Trackless Electric Platform Cart,SGS Material Transfer Electric Platform Cart,Steel Box Structure Die Transfer Cart |
||

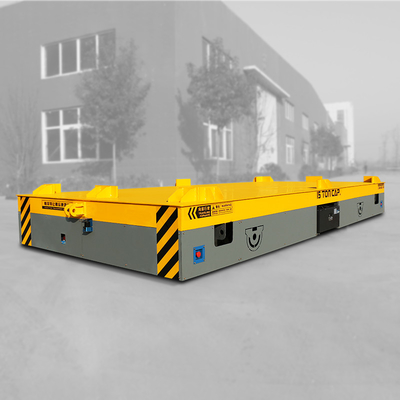

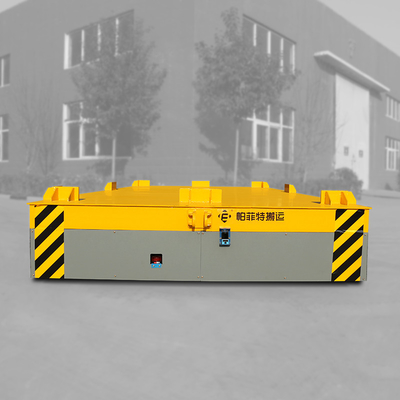

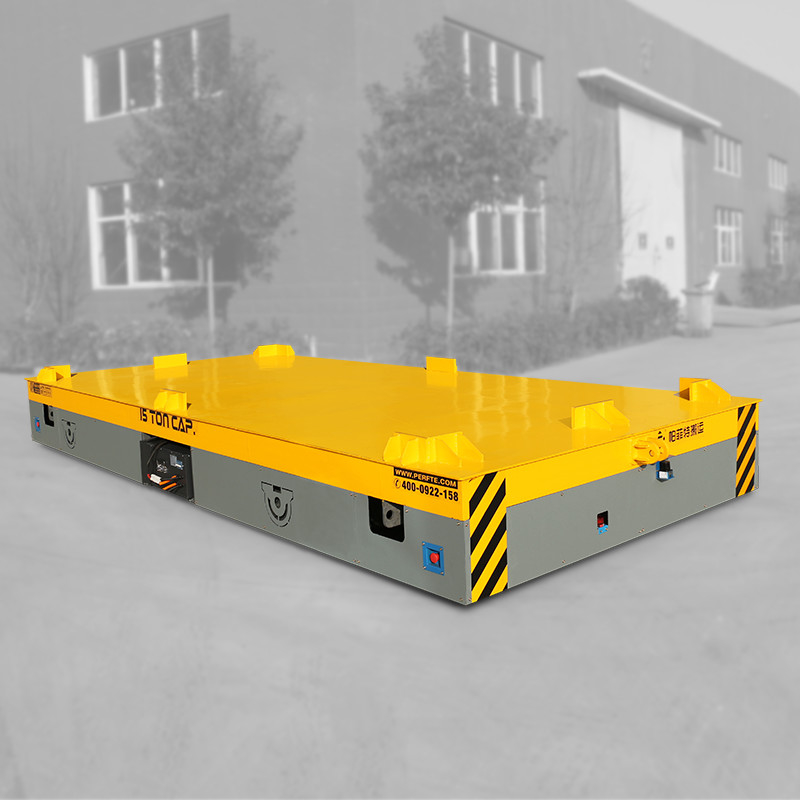

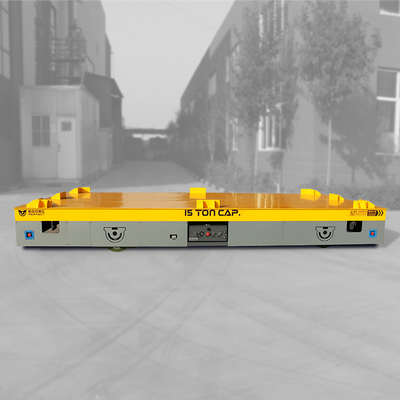

Electric Trackless Platform Steel Box Structure Cart Heavy Duty Material Transportation
Introduction
Perfect Material Handling offers a wide range of Die Handling Products specifically designed for the unique needs of both stamping and molding and transporting heavy die or mold from die storage to the press line. These die transfer cart is widely used in the processing line of
punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table and so on.
Application
PERFECT heavy die transfer trailers are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Spare Parts
Parameter of form
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | ||
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | ||
| Ground requirement | Cement floor or Steel plate ground | ||||||
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 | ||
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | ||
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | ||
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | ||
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | ||
| Turning type | Turning while driving with no stop | ||||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | ||
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | ||
| Wheel material | ZG55+hydropurture | ||||||
| Running speed (m/min) | 0-15 | 0-12 | |||||
| Brake principle | Electric magnetic brake | ||||||
| Operation method | With wire or no wire | ||||||
| Charger's installation | Installed on cart | Split-type | |||||
| Charger's function | Automatic stop for obstacles | ||||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||||
| Warning equipment | Sound and light | ||||||
| Other functions | Turning light, night light and power display | ||||||
How to choose a transfer cart?
If you need to move heavy duty goods bay to bay,then you must need our product.There is no doubt that it will improve your working effciency.Please tell us some data as below,we will design a suitable transfer trailer for you.
1. What material/cargo are you going to transfer?
2. What load capacity do you want?
3. What kind of ground does the transfer cart operate on? (rails or cement floor)
4. What’s the specification table size ? (length,width and height)
5. How long is the running distance?
6. How many working hours do you have everyday?
7. Or do you have any other special requirement?(Anti-explosion,anti-high tempearture)
