Product Details:
Payment & Shipping Terms:
|

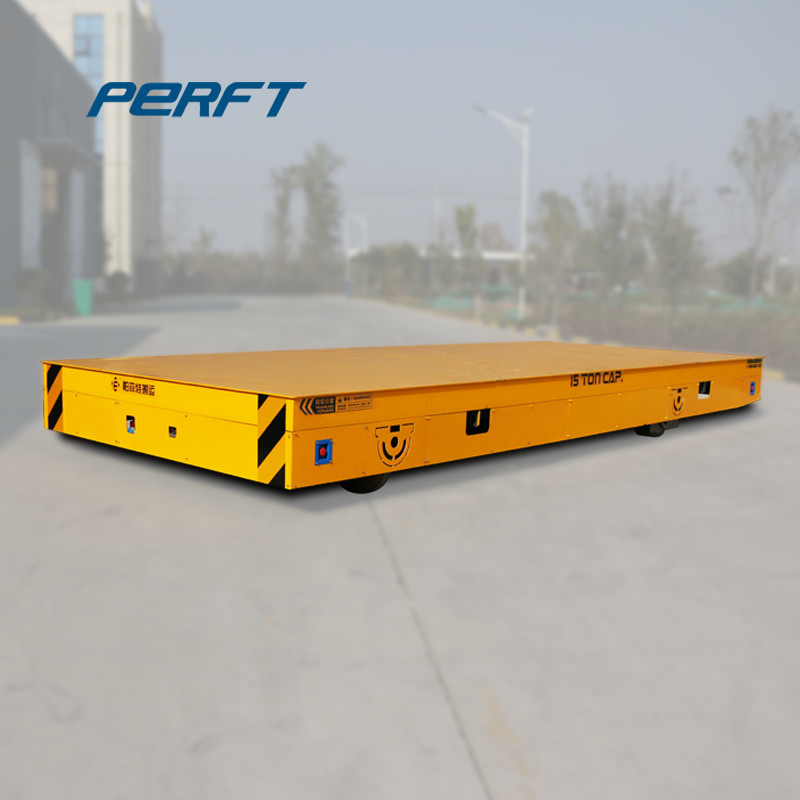

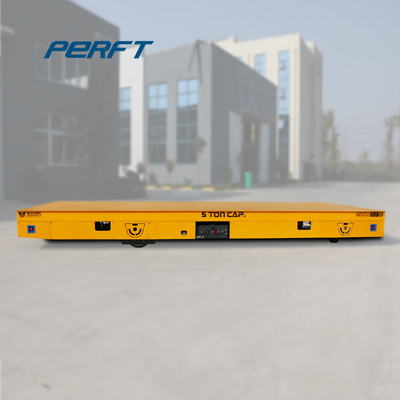

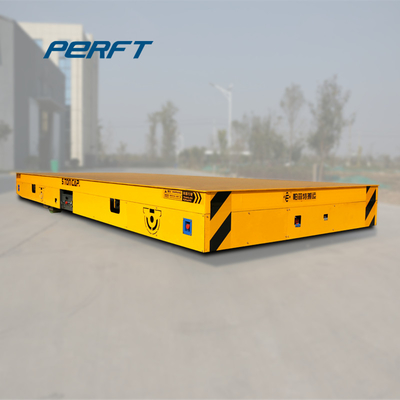

| Product Name: | Trackless Transfer Bogie | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Load Capacity: | 1-200T (Customized) | Color: | Blue, Customized |
| Working Time: | 6~7 Hours | Wheel Type: | Polyurethane Coated Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| High Light: | Trackless Molten Metal Transfer Cart,Steerable Trackless Transfer Bogie,Cement Trackless Transfer Bogie |
||
Introduction
Our trackless transfer bogies series rail powered transfer car get its power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.
Application Fields
We produce a wide range of trackless transfer bogies such as manufacture, oil and gas, die shops, chemical plant, mining industry, power generation, coal industry, paper mills, warehouse and many other lines.
Advantages
Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Running on Floor or Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
Our Company
We have been specializing in bogie production for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
