Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Load Capacity: | 1-200 Ton/ Customized |
| Color: | Yellow/Customized | Working Time: | 6~7 Hours |
| Wheel Type: | Polyurethane Coated Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Parameter: | 3600*2000*530 |
| Ground: | Cement Floor/ Epoxy Flooring | ||
| High Light: | 20Ton Die Transfer Cart,Steerable Die Transfer Cart,Cement Casting Steerable Transfer Trolley |
||
Introduction

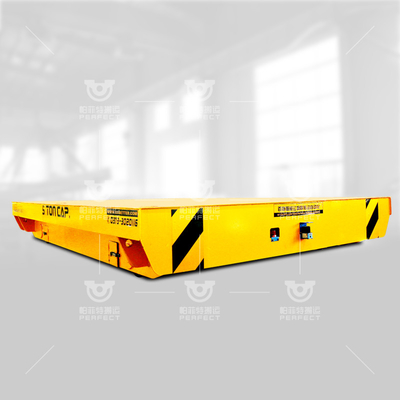

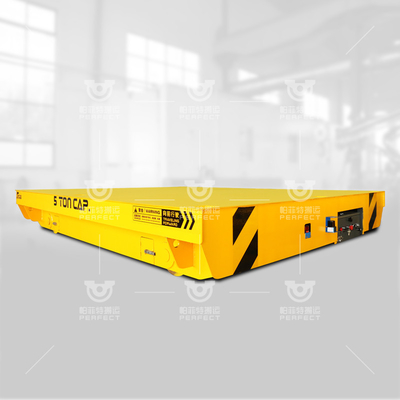

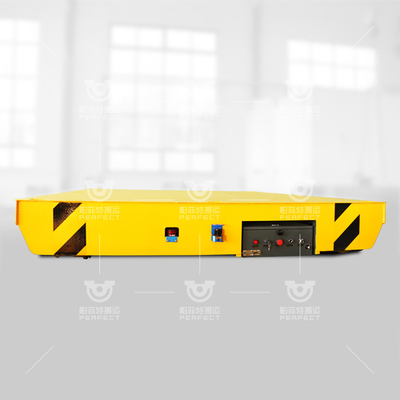

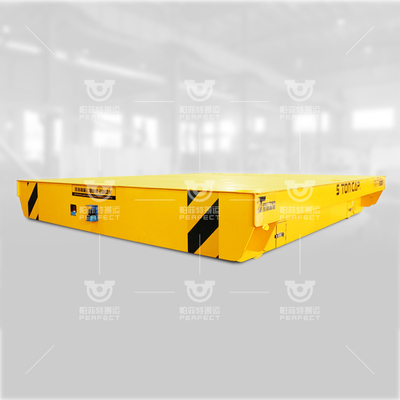

BWP series battery powered trackless carts get its power from the battery mounted on the bottom of the cart. The direct current pass the electronic control box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.
Application
Our products are used in steel industry, heavy engineering workshops, paper mill. Also we export a huge range of the extreme quality of transfer cart.With advantages of large load capacity wireless power, the transfer cart is widely applied in bridge construction to transfer bridge. In this stage, the cart is generally worked together with cranes.Transfer cart is also widely in assembly line and can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
Customer and companys
Henan Perfect Handling Equipment co., Ltd. has been committed to solve problems related to the transportation and handling of materials for any type of industries and plants.We design and manufacture transfer carts,transfer trolleys, rail guided transfer carts, industrialflat trailers, tilters and other handling equipment. We provide all customized productions as you need and search functional solutions to our customers.
Parameters of Motorized Heavy Transporter
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
